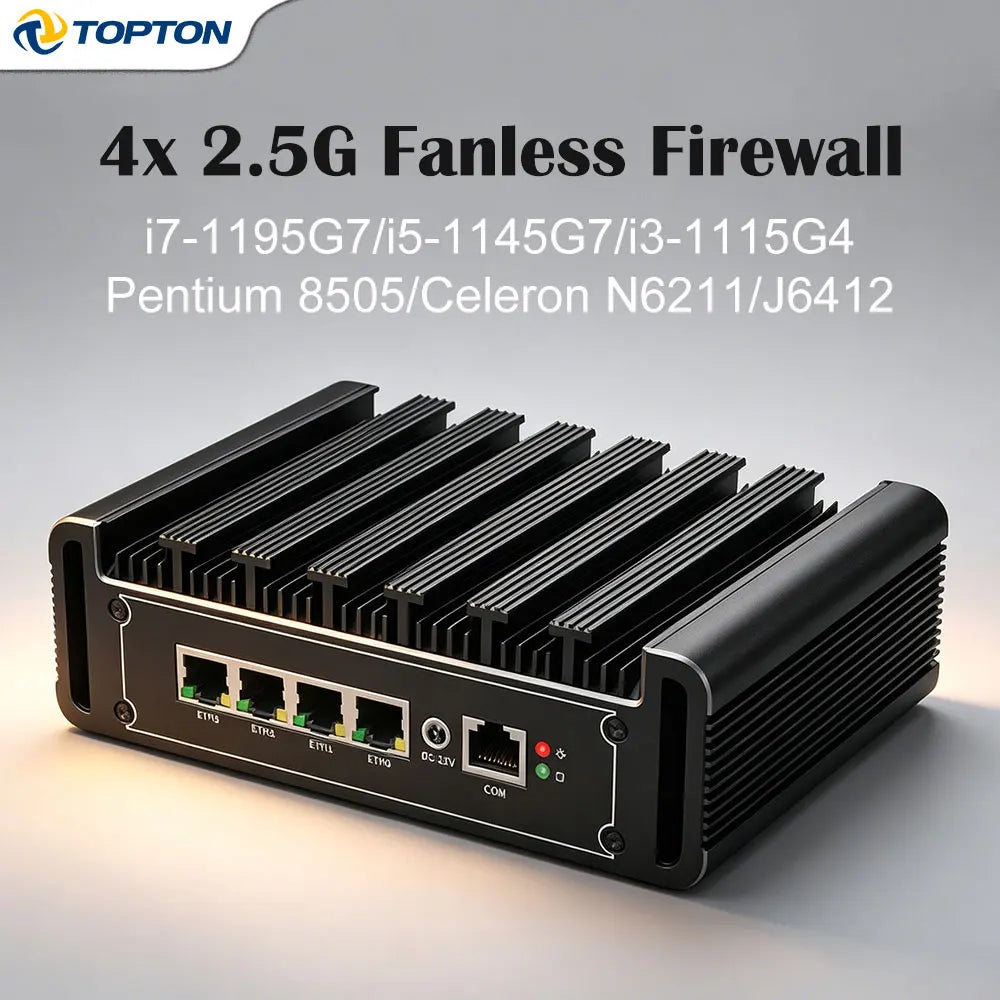

Top Version Fanless Firewall Mini PC Intel i7 i5 i3 8505 J6412 J5005 4x i226-V 2.5G LAN pfSense Proxmox OPNsense Home Server

Regular price $526.61 USD

Regular price ~~$0.00 USD~~ Sale price $526.61 USD

Sale Sold out

Color Celeron N6211Variant sold out or unavailable Celeron 6305Variant sold out or unavailable Celeron J6412Variant sold out or unavailable Pentium J5005Variant sold out or unavailable Pentium 8505Variant sold out or unavailable i3-1115G4Variant sold out or unavailable i3-1215UVariant sold out or unavailable i7-1195G7Variant sold out or unavailable

Bundle 16GB DDR4 256GB NVMeVariant sold out or unavailable 8GB DDR4 128GB NVMeVariant sold out or unavailable No Ram No StorageVariant sold out or unavailable 32GB DDR4 512GB NVMeVariant sold out or unavailable

Quantity Quantity

(0 in cart)

SPECIFICATIONS

Brand Name: Topton

Certification: CE

Graphics Card Type: Integrated Card

Hard Drive Capacity: ≤ 40 GB

High-concerned chemical: None

Memory Capacity: ≥ 4GB

Model Number: X4D

Origin: Mainland China

Processor Brand: Intel

Processor Main Frequency: Depends on CPU

Processor Model: Core/Pentium/Celeron

Type: Mini Desktop,Mini PC

Use: Commercial

Processor parameter for referance only

Processors	Cores & Threads	L3 Cache	Base Frequency	Max Turbo Frequency	TDP
Intel N150	4 cores, 4 threads	6M	/	3.60 GHz	6W
Celeron 6305	2 cores, 2 threads	4M	1.80 GHz	/	15W
Celeron J6412	4 cores, 4 threads	4M	2.00 GHz	2.60 GHz	10W
Pentium J5005	4 cores, 4 threads	4M	1.50 GHz	2.80 GHz	10W
Pentium Gold 8505	5 cores, 6 threads	8M	/	4.40 GHz	15W
Core i3-1215U	6 cores, 8 threads	10M	/	4.40 GHz	15W
Core i7-1195G7	4 cores, 8 threads	12M	2.90 GHz	5.00 GHz	28W
Core i5-1145G7	4 cores, 8 threads	8M	2.60 GHz	4.40 GHz	28W
Core i3-1115G4	2 cores, 4 threads	6M	3.00 GHz	4.10 GHz	15W

Product Specifications

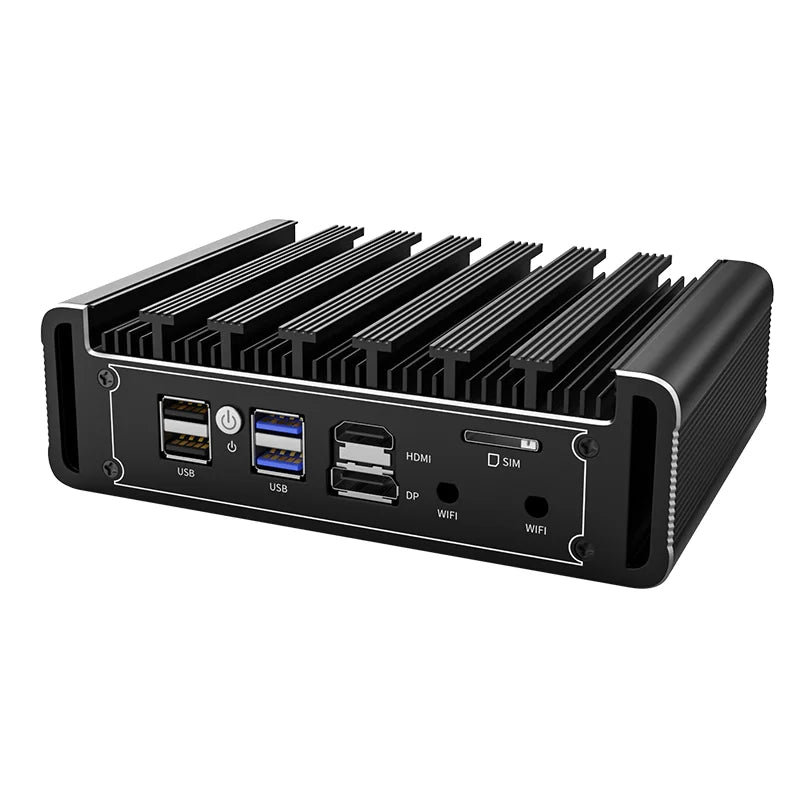

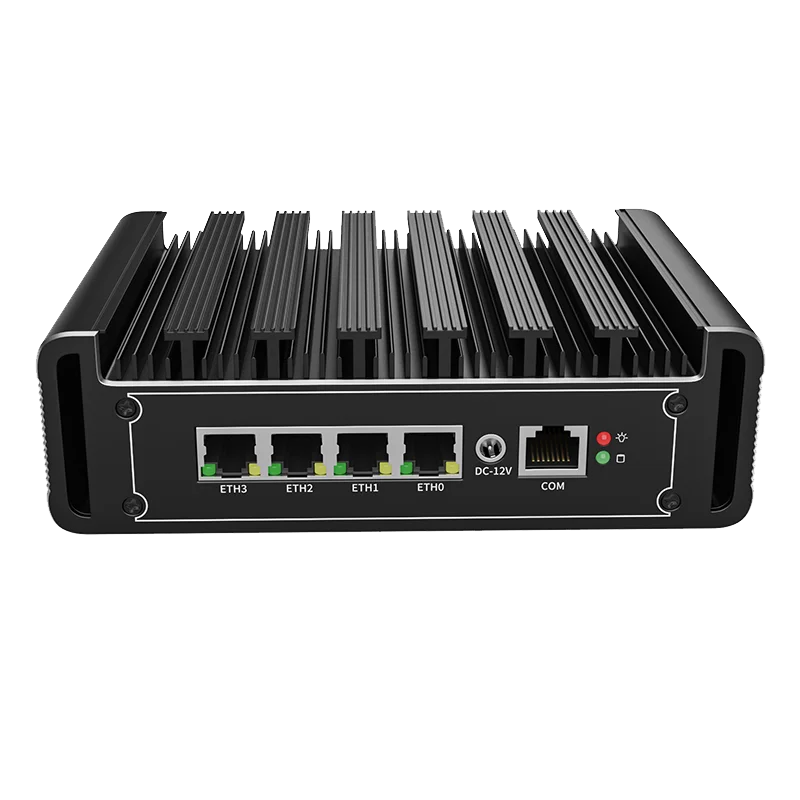

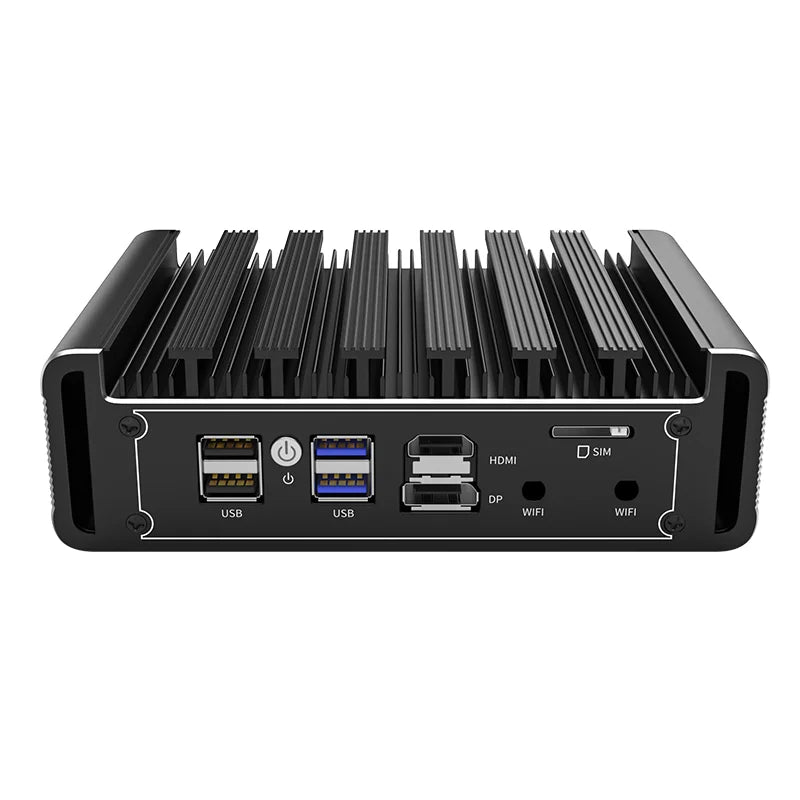

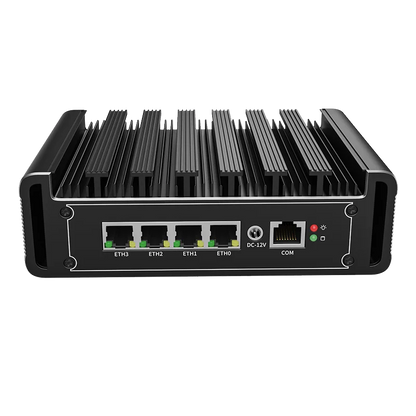

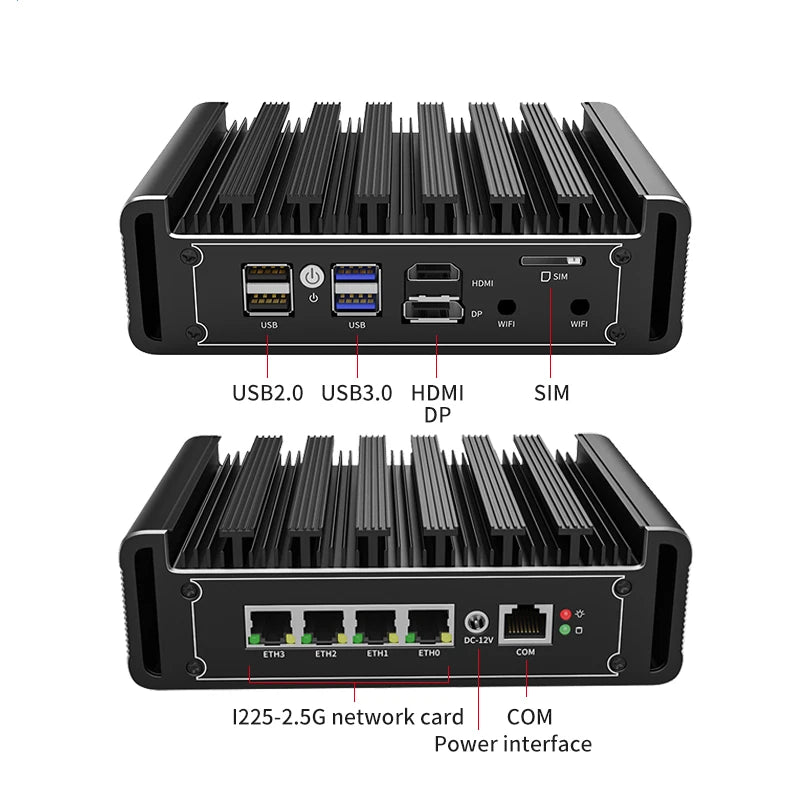

4x Intel i226-V 2.5GbE RJ45 LANs, 2x USB 3.0, 2x USB 2.0, 1x RJ45 COM console, 1x 4G/3G SIM slot.
2x DDR4 SODIMM non-ECC RAM slots, supports 2400/2666/3200MHz.
Dual storage supported: 1x M.2 NVMe/PCIe 3.0 x1 2280 SSD + 1x 2.5'' SATA 3.0 7mm SSD/HDD.
1x SIM slot & 1x MPCIE wireless slot, supports WiFi/4G/3G (USB signal, 3 options selectable).
Supports 1x HDMI + 1x DP dual 4K video output.
Supports AES-NI, ESXI, PVE, watchdog, auto power-on, RTC, PXE boot, Wake-on-LAN, etc.

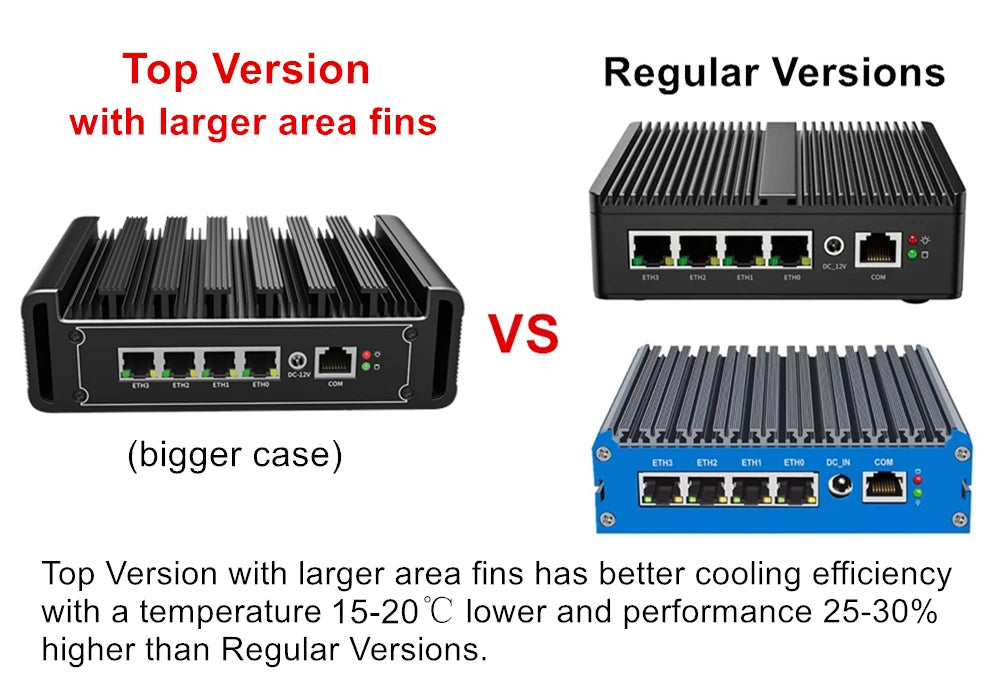

Fanless design with large-area heatsink provides much better cooling performance,

running 15–20℃ lower and delivering 25–30% higher performance than standard models on the market.

Stable, silent, and durable for 24/7 continuous operation.
Low power consumption TDP. Can be mounted behind the monitor via VESA bracket (optional).
