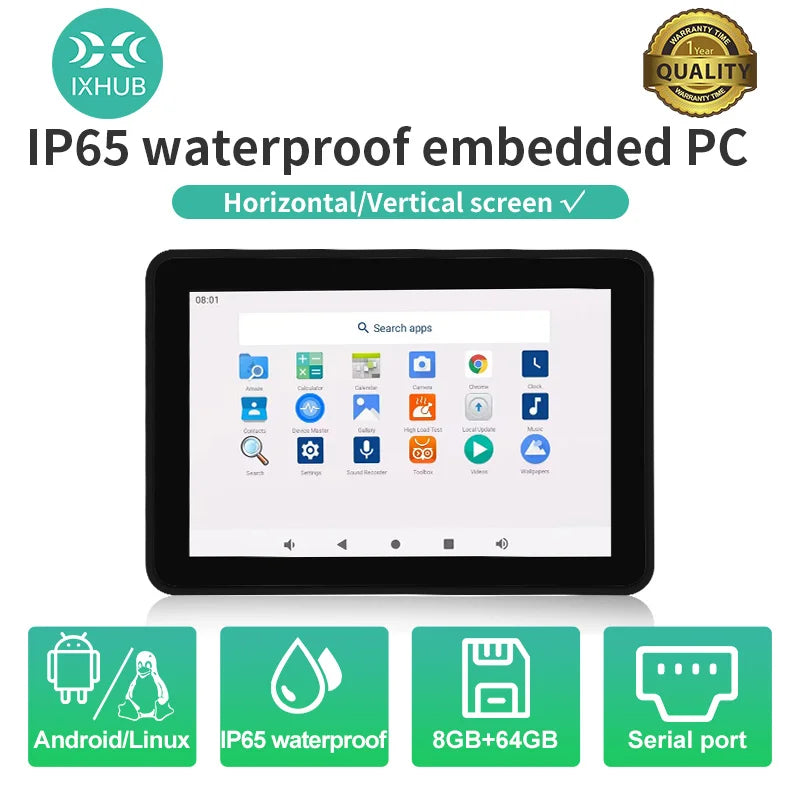

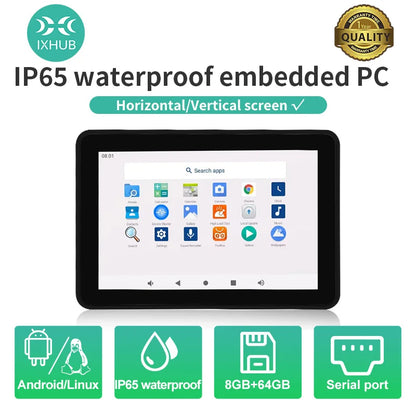

IXHUB 10.1" IP65 Waterproof PC Panel Android13 Linux Ubuntu 20.04 Industrial ALL in one Computer capacitive HMI IPS Touch Screen
IXHUB 10.1" IP65 Waterproof PC Panel Android13 Linux Ubuntu 20.04 Industrial ALL in one Computer capacitive HMI IPS Touch Screen
Couldn't load pickup availability
SPECIFICATIONS
Bluetooth: 5.2
Brand: IXHUB
Brand Name: NONE
Brightness: 500nit/1000nit optional
Bulk customization: Screen printing and logo
Certification: CE,FCC,RoHS
Colors: 16.7M Colors
Compatible Brand: Universal
Display Size: 10.1 Inch
Ethernet: 10/100/1000M RJ45 Gigabit
High-concerned chemical: None
Memory: 2GB/4GB8GB
Model Number: IXP101M1
Origin: Mainland China
PCBincluded: Yes
Panel type: IPS
Product Type: Tablet Touch Panel
Resolution: 800*1280/1280*800
Screen Type: Capacitive Screen
Serial Ports: 2*TTL/RS232/RS485 Header
Storage: 8GB/16GB/32GB/64GB/128GB
System: Linux/Andriod/Ubuntu
Touch mode: 5-point touch
WiFI: Standard Single frequency WiFi6 (Optional Dual-band WiFi6)
IXHUB 10.1" IP65 Waterproof Tablet Panel PC Android Linux Ubuntu Industrial ALL in one Computer Plastic HMI IPS Touch Screen for Bus Pos Smart Home with CE FCC ROSH Gost-R
Operating system |
Allwinner A133P |
Rockchip RK3288 |
RockchipRK3568 |
RockchipRK3576S |
Android |
Android10 |
Android7.1/5.1/6.0/8.1 |
Android11/12/13 |
Android14 |
Linux |
Ubuntu18.04/LinuxQT |
Ubuntu-18.04/Debian9/LinuxQT |
Ubuntu-20.04/Debian11/LinuxQT |
Ubuntu-22.04/ Debian12/LinuxQT |
Program |
Allwinner A133P |
Rockchip RK3288 |
RockchipRK3568 |
Rockchip RK3576S |
CPU |
4-Core A53，Clocked at 1.8GHz |
4-Core A17，Clocked at 1.8GHz |
4-Core A55，Clocked at2.0GHz |
4-core Cortex-A72 +4-core Cortex-A53 (Clocked at2.2GHz) |
GPU |
GE8300 |
Mali-T764 |
Mali-G52 2EE |
Mali-G52 MC3 |
NPU |
NO |
NO |
1TOPS |
3TOPS |
Memory + Storage |
1GB+32GB, up to 4GB+128GB |
2GB+32GB, up to 4GB+128GB |
2GB+32GB, up to 8GB+128GB |
4GB+32GB, up to 16GB+256GB |

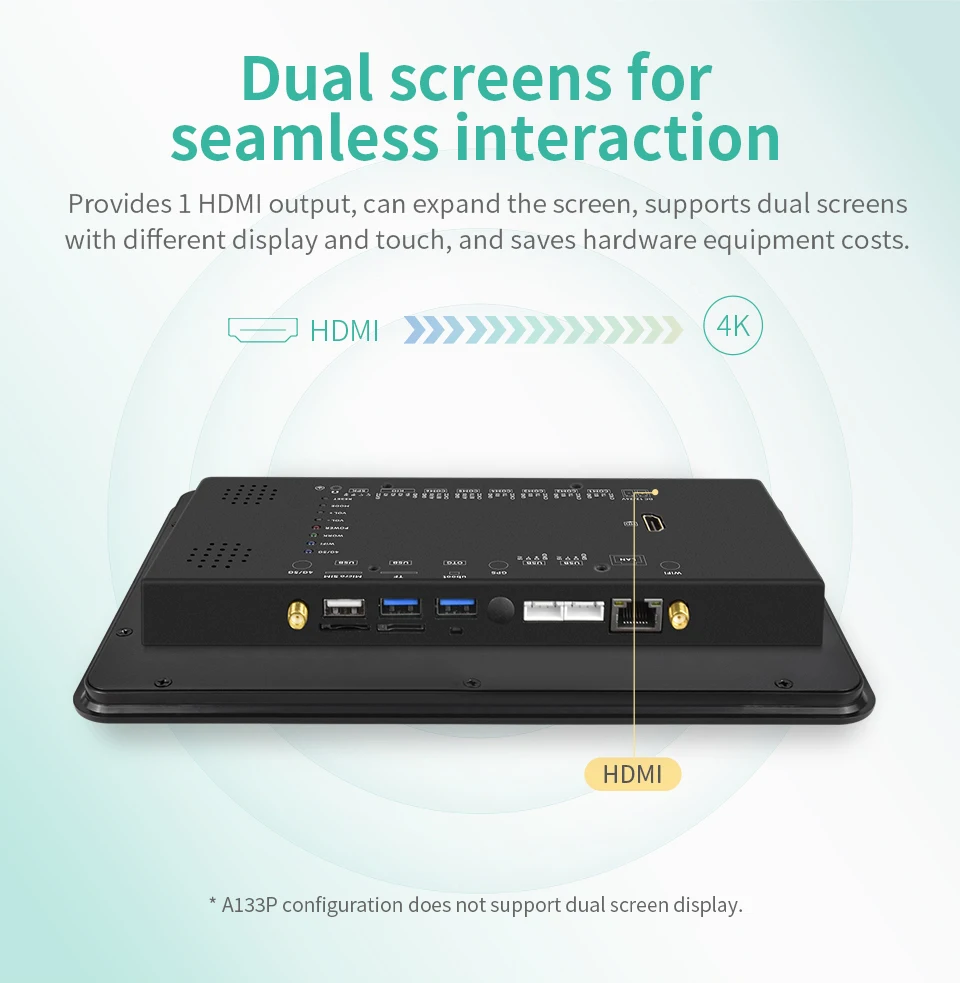

HDMI |
NO |
HDMI 2.0 |
HDMI 2.0 |
HDMI 2.0 |
Ethernet |
100Mbps |
Gigabit |
Gigabit |
Gigabit |
COM |
Support (optional, choose between COM and Uart6) |
NO |
NO |
NO |
CAN |
NO |
NO |
Support (optional, choose between CAN and COM6) |
NO |
WiFi |
StandardSingle frequency WiFi6(OptionalDual-bandWiFi6) |
|||
Bluetooth |
WiFi6 standard BT 5.2 |
|||
HP& MIC |
1-way 4-segment integrated 3.5mm socket for earphones |
|||
Power amplifier |
1 channel8 euro3W dual audio amplifier output(Built-in 8 euro 3W speaker, optional) |
|||

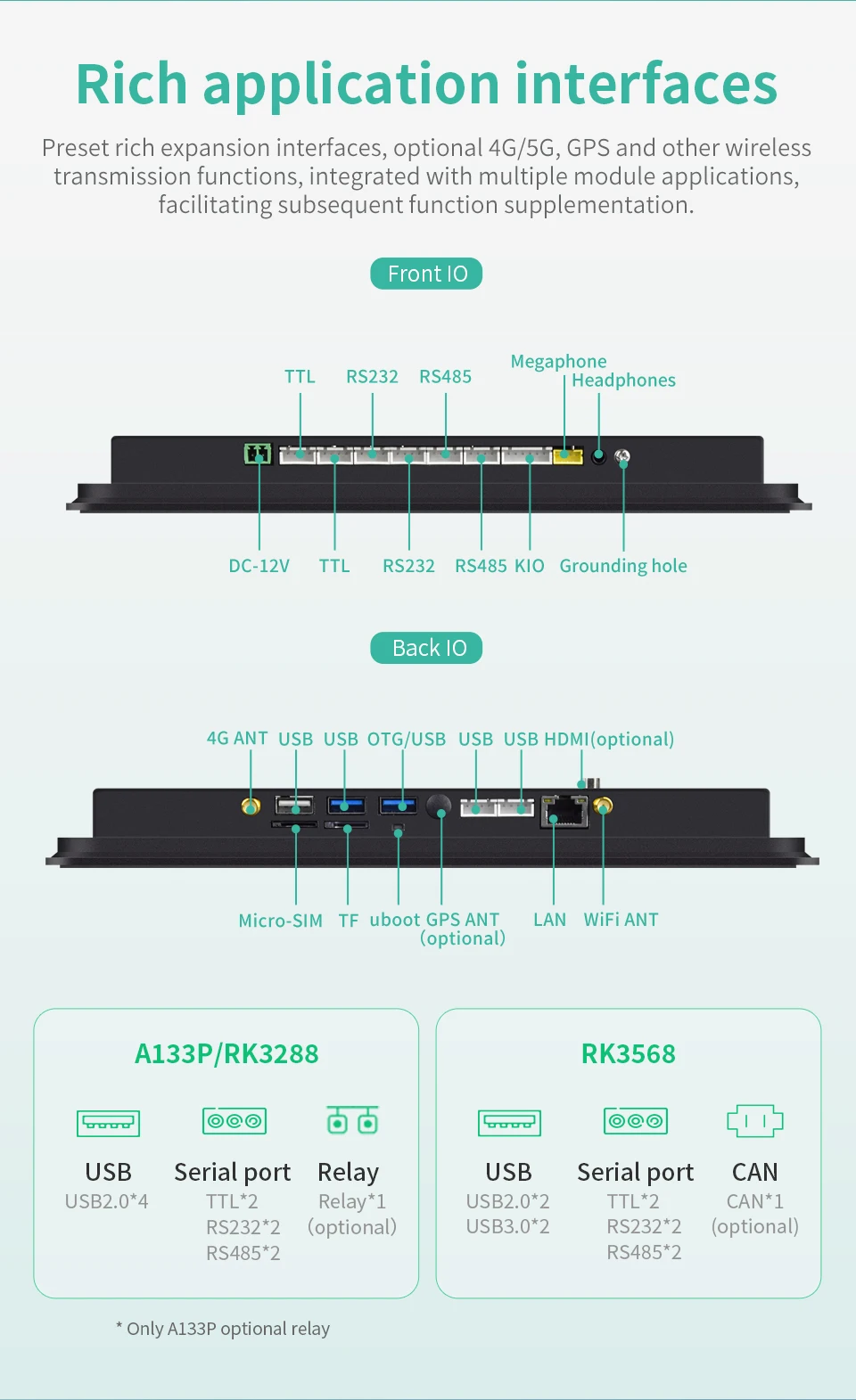

USB |
2USB socket, 2 USB hosts, 1 USB OTGsocket |
|||
Serial port |
2-way TTL, 2-way RS232, 2-way RS485(Optional 6 TTL or 4 RS232) |
|||
4G/5G(Optional) |
EC25EFA/EC25EUXGR/EC25JFA/EC25AUXGR/EC25AFXGA/EC25AUXGR/EG25GGB 4G module with GPSclick to buy |
|||
GPS(Optional) |
Need 4G module,Supports dual positioning of Beidou and GPSclick to buy |
|||
POE(Optional) |
One built-in POE module, which supports POE power supply for the RJ45 network port |
|||
SIM |
1-way Micro SIM card slot |
|||
TF |
1-way self-ejecting TF card socket, up to 256GB TF card support |
|||
GPIO |
4-way GPIO signal |
|||
LED |

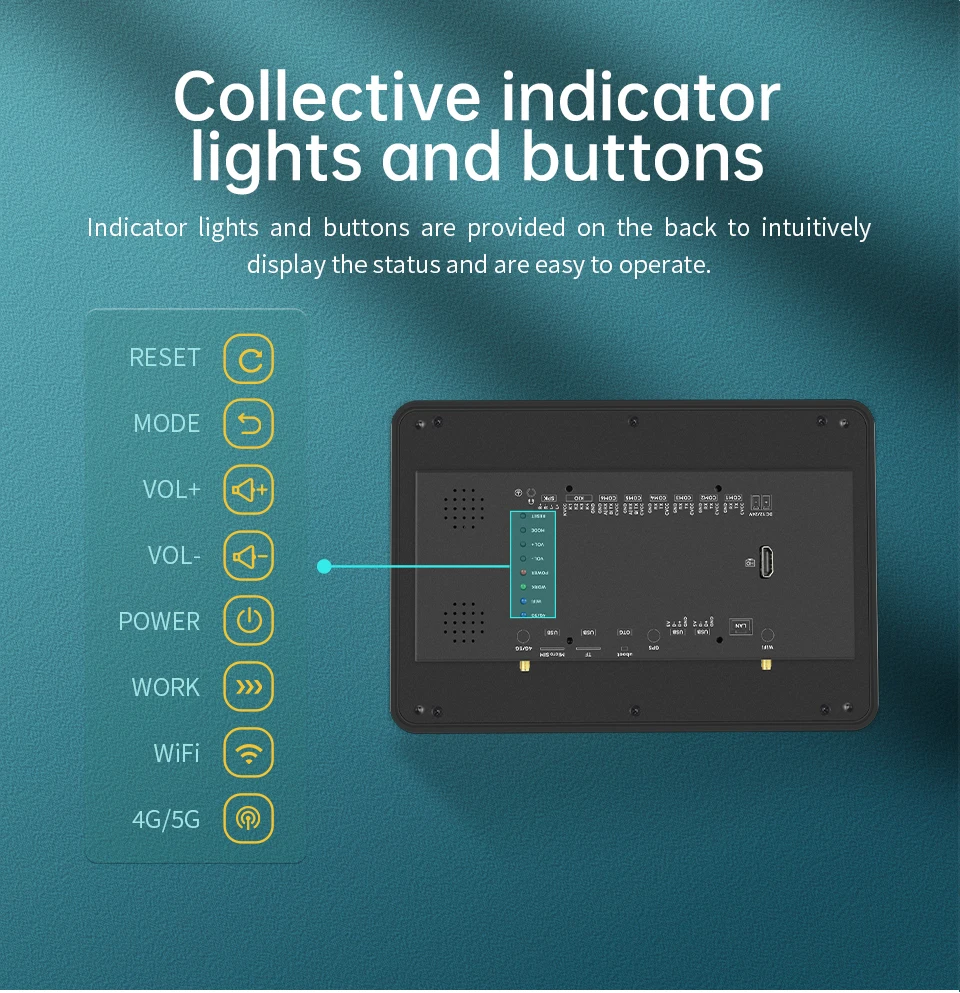

4-way, power light, running indicator light, WiFi indicator light, 4G/5G network indicator light |
|||
RTC |
Ultra-low power RTC circuit (CR1220 button battery), support timing switch |
|||

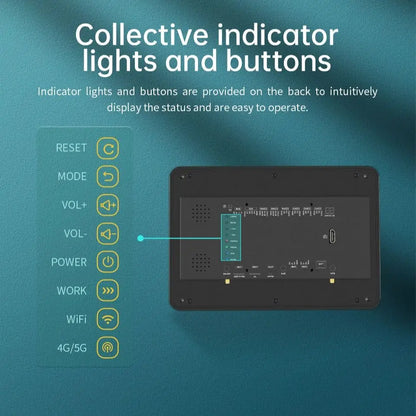

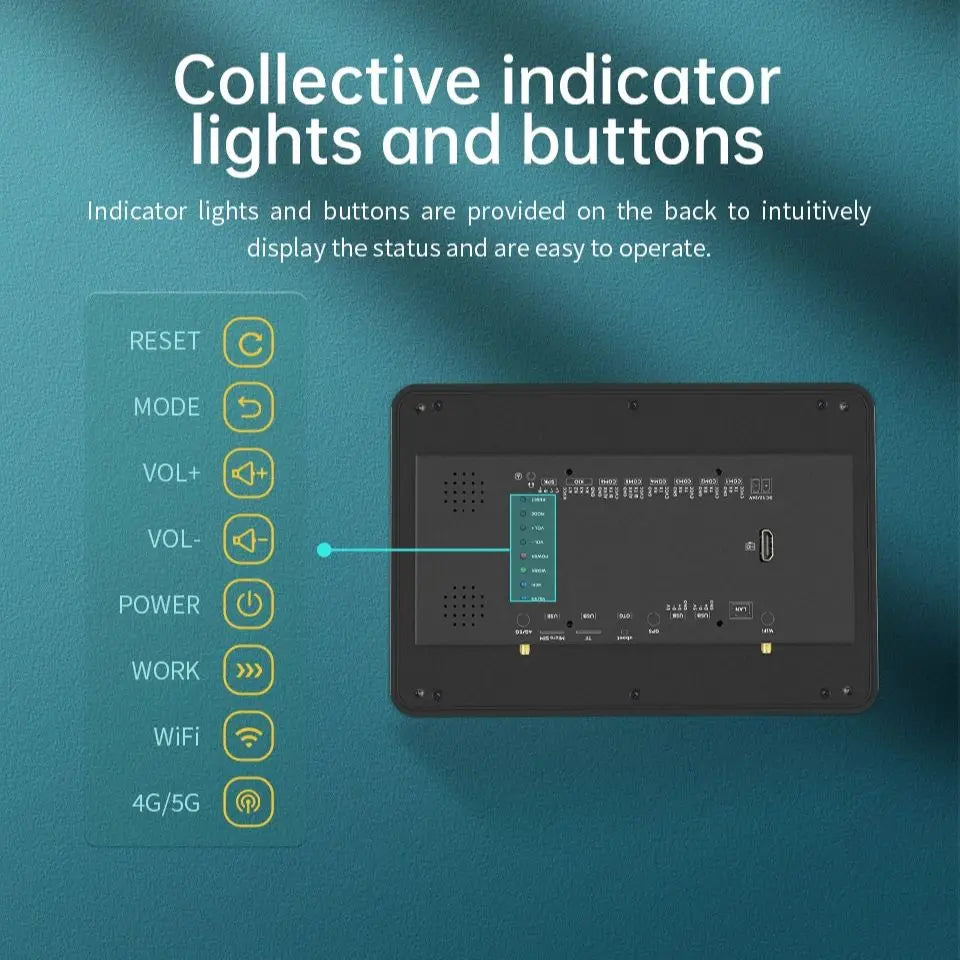

User buttons |
Reset key, return key, volume+and volume -, burn key |
|||
Source |
1 circuit, DC12V ± 5%/DC24V ± 5% power supply, DC 2P-3.81MM |
|||
Specifications |
10.1 inch smart center control screen |
|||
Product model |
IXP101H1-A133P |
IXP101H1-RK3288 |
IXP101H1-RK3568 |
IXP101H1-RK3576S |
resolution |
800*1280 |
|||
display scale |
5:8 |
|||
Display area |
136*217.2mm |
|||
panel type |
IPS |
|||
visual angle |
Full perspective |
|||
brightness |
500cd/m²(Optional 1000 cd/m²) |
|||

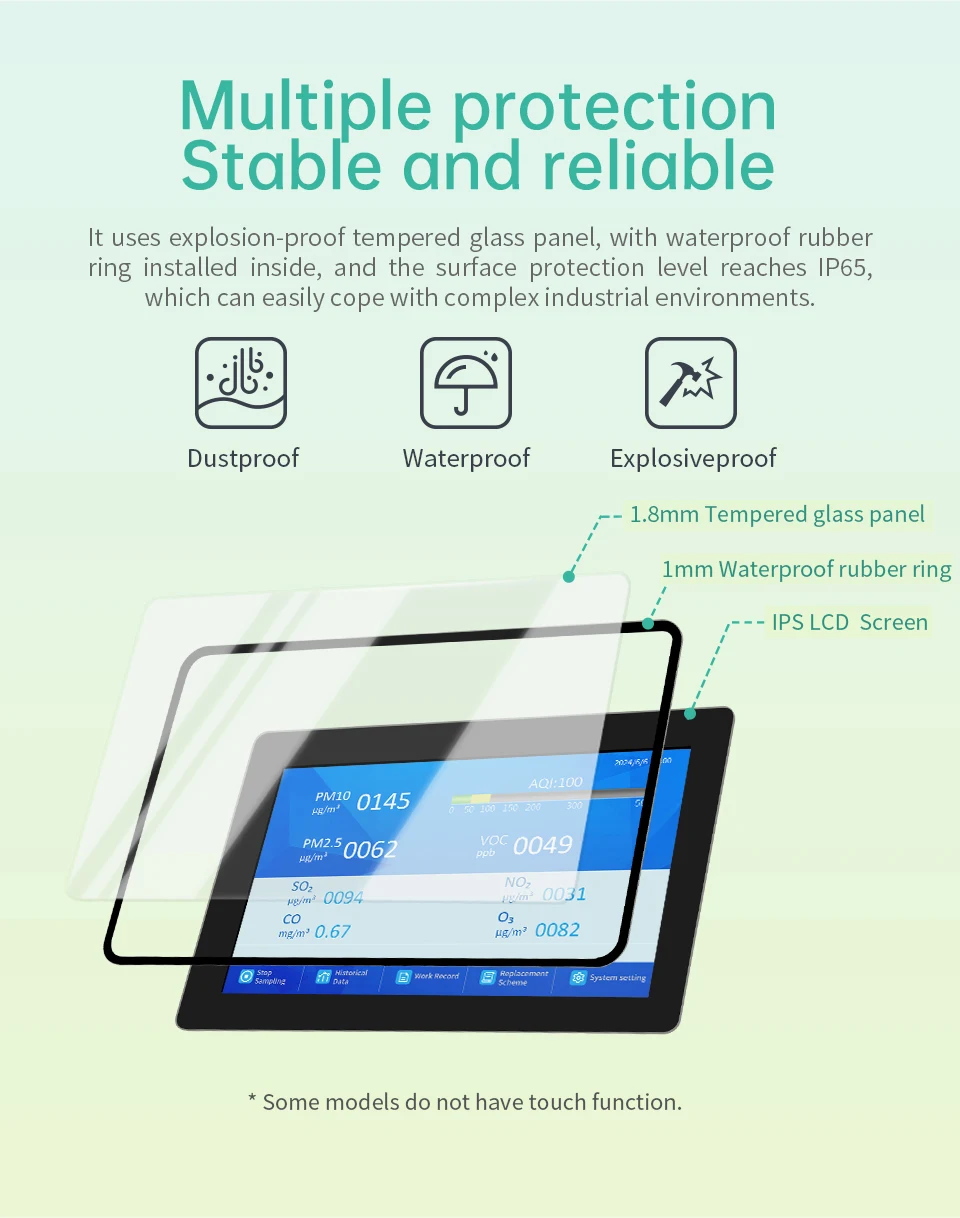

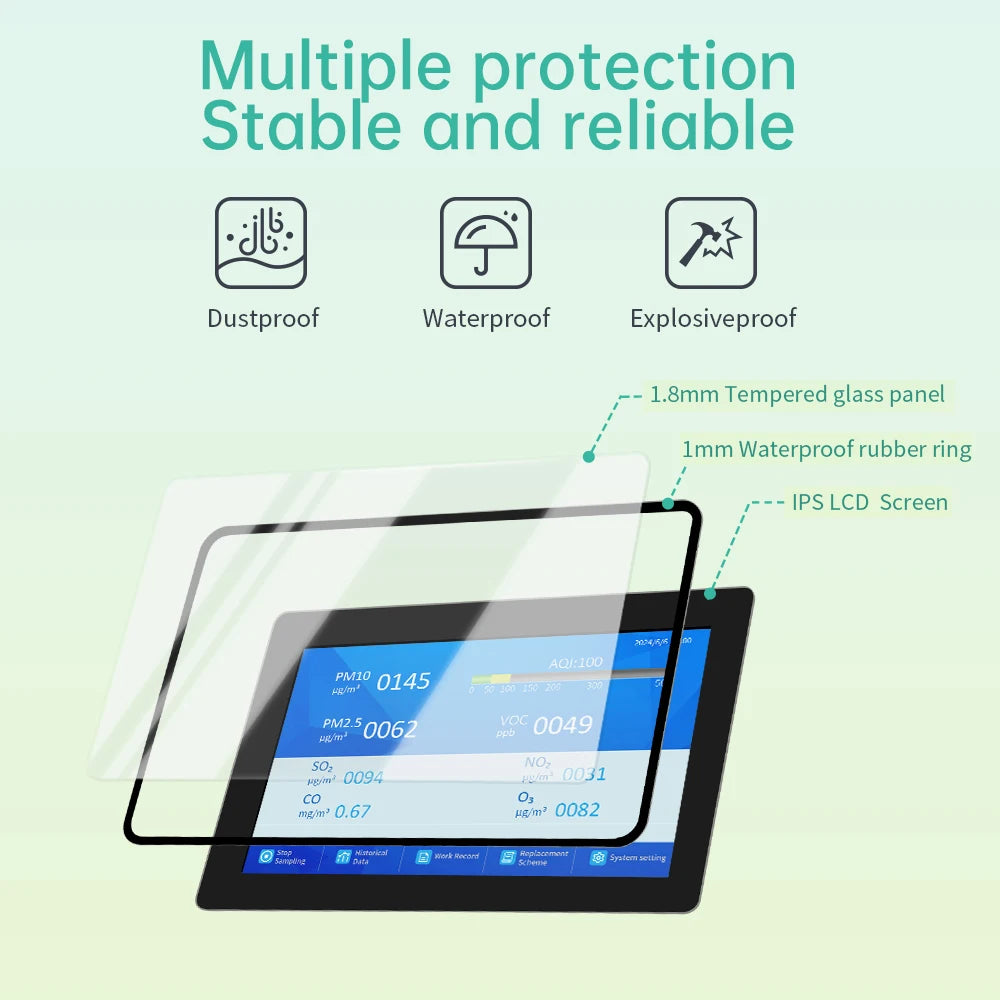

Glass thickness |
1.8mm |
|||
Glass surface hardness |
>6H |
|||
Transmittance of glass |
85% |
|||
Touch surface material |
Flat tempered glass |
|||
Touch screen type |
capacitance |
|||
Touch mode |
5-point touch |
|||
Panel protection class |
Front panel IP65, rear cover IP20 |
|||

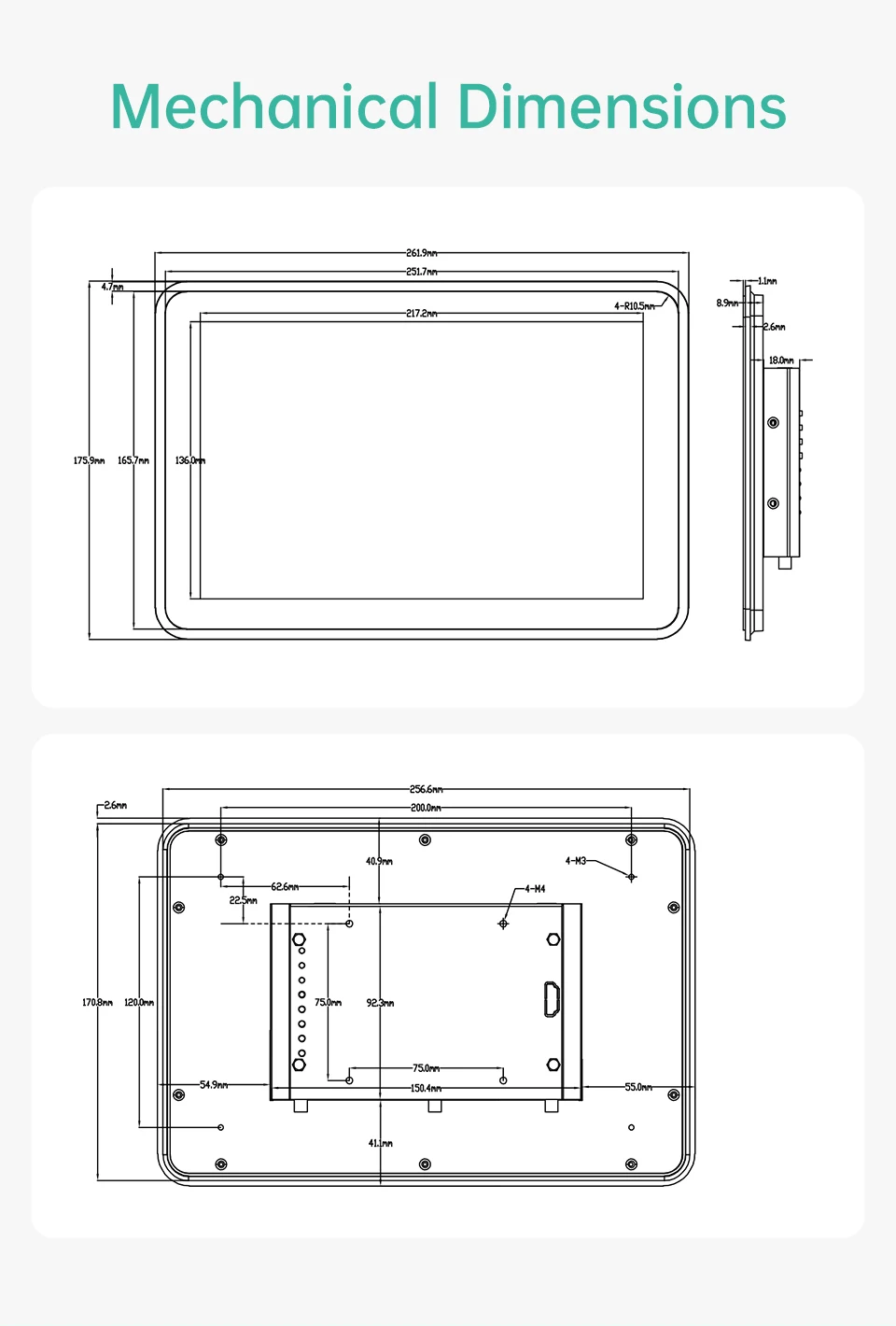

Overall dimensions |
175.9*261.9mm |
|||
Case color |
Black |
|||

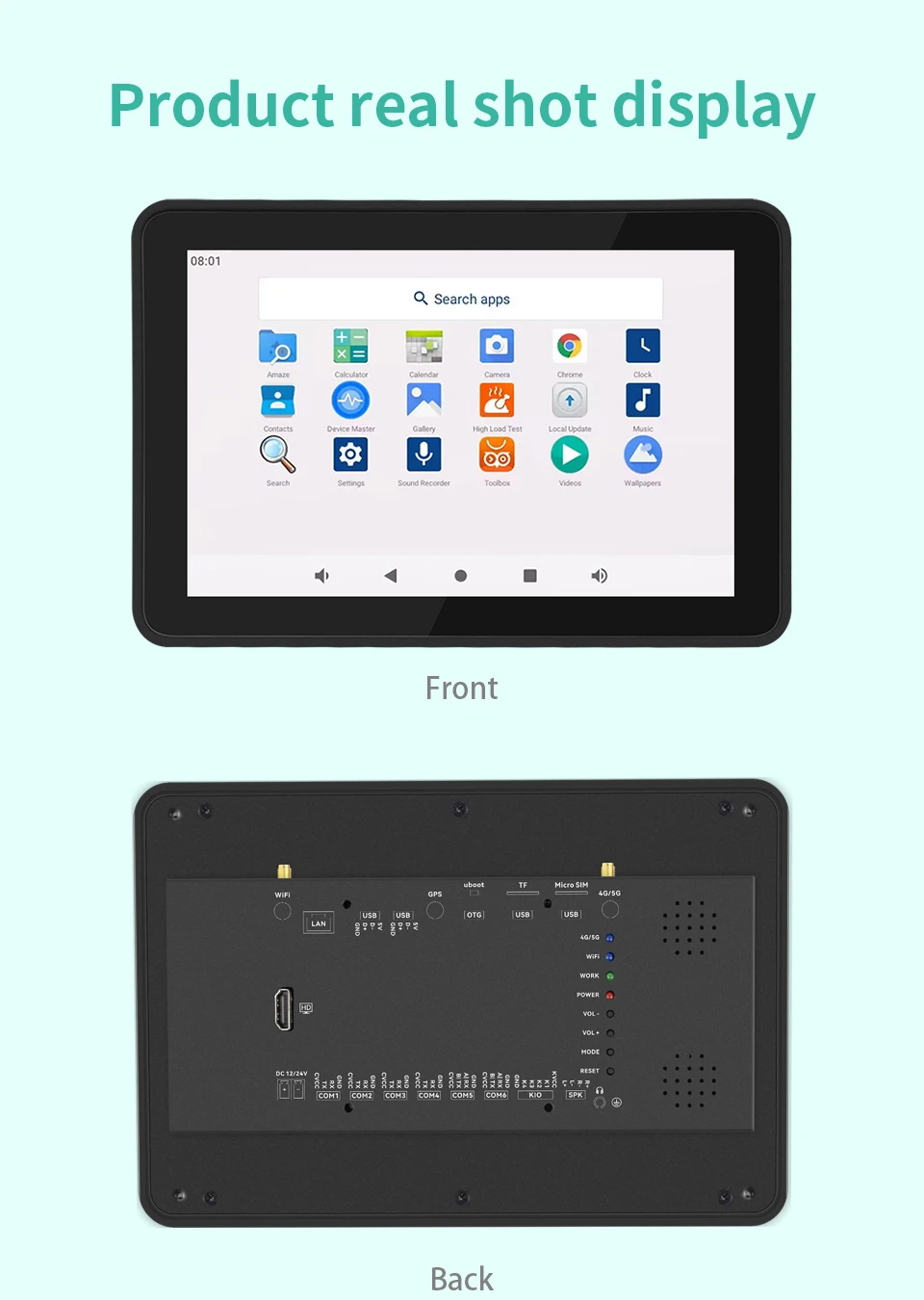

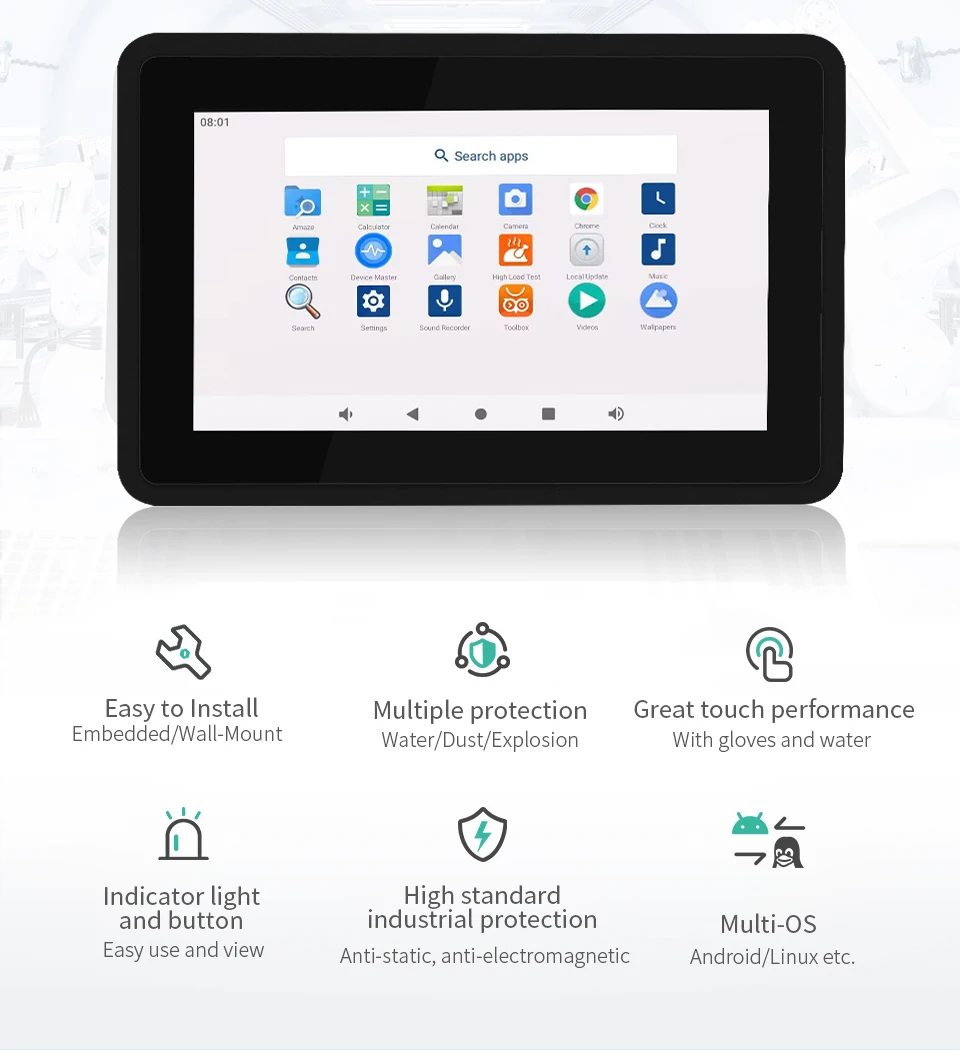

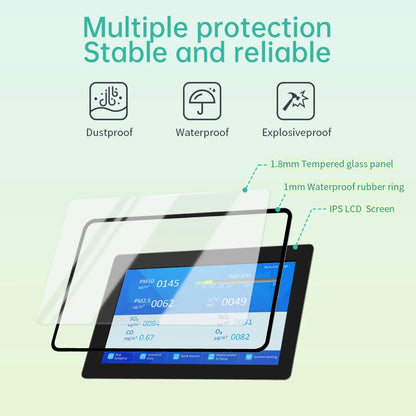

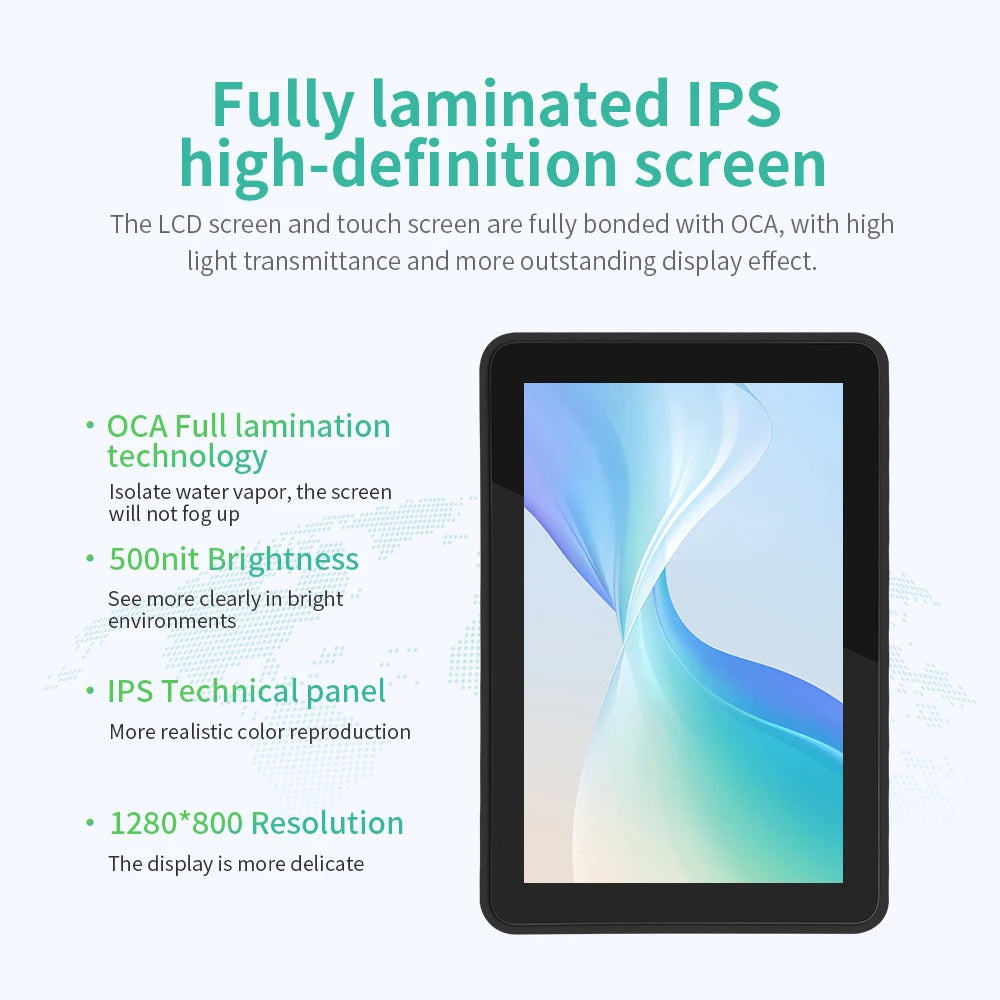

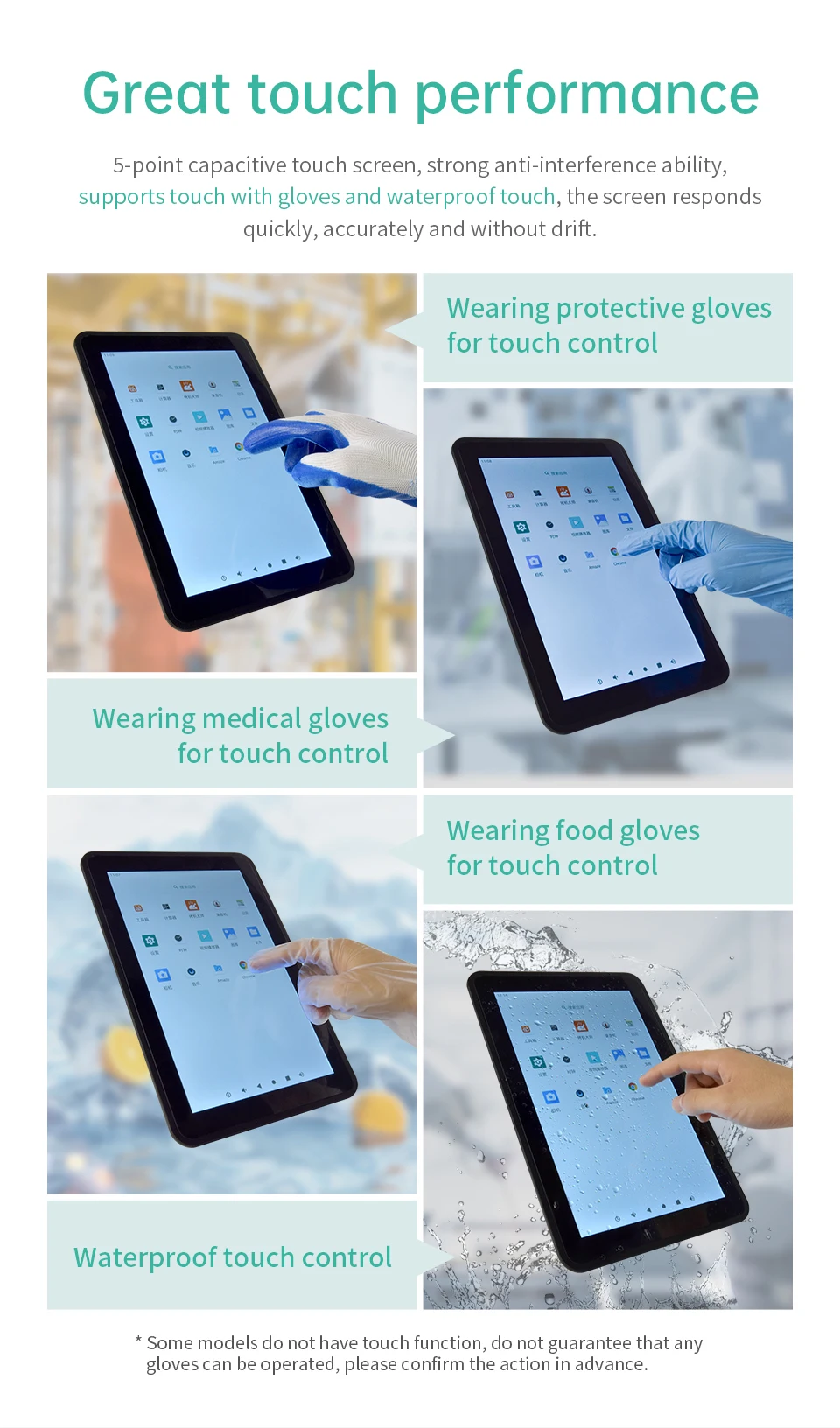

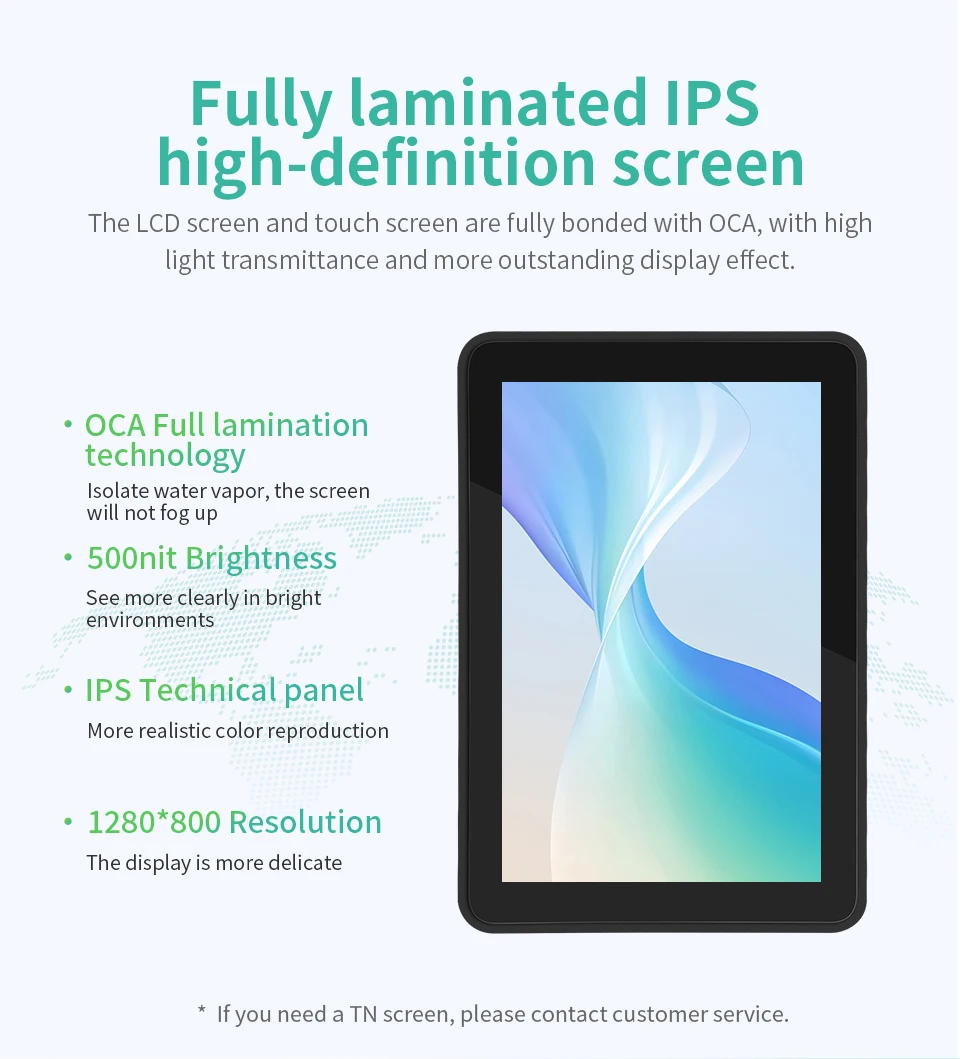

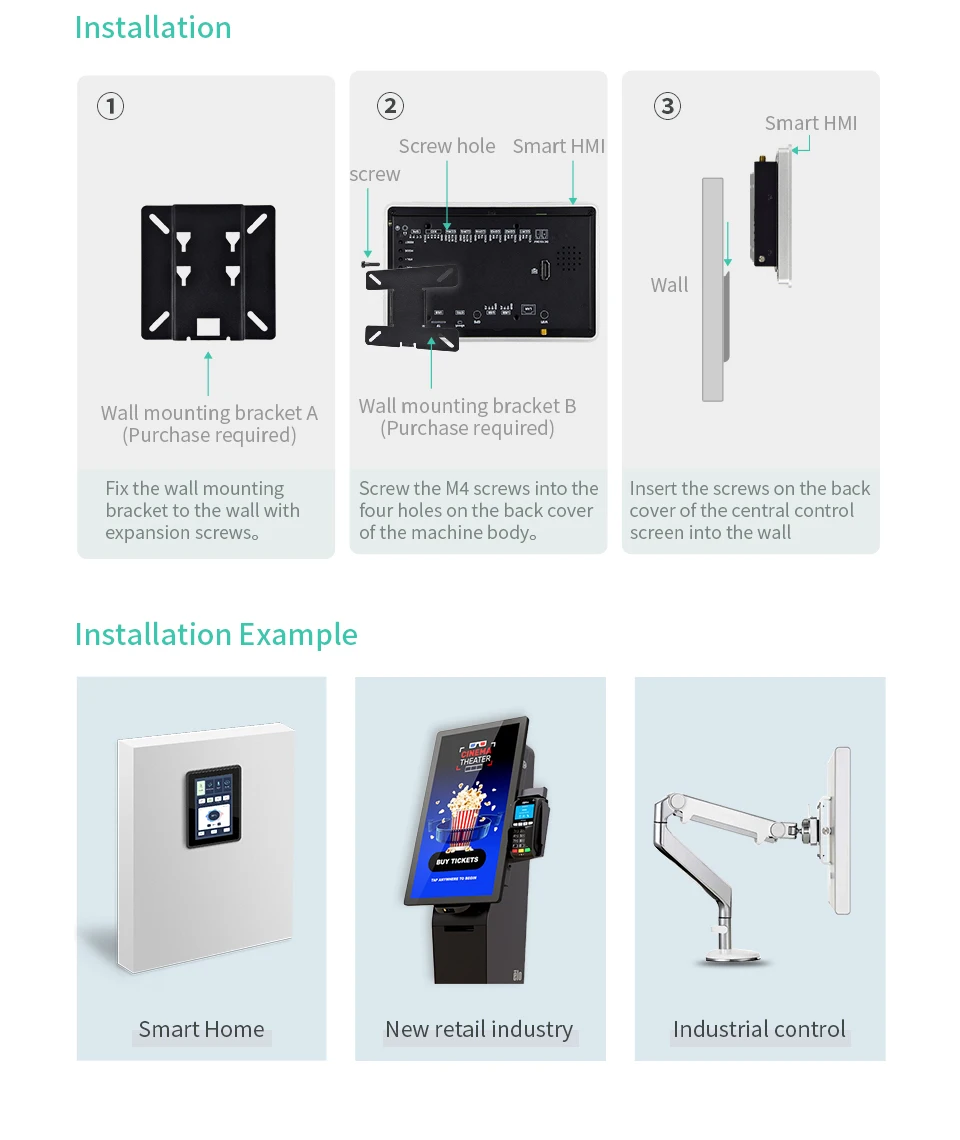

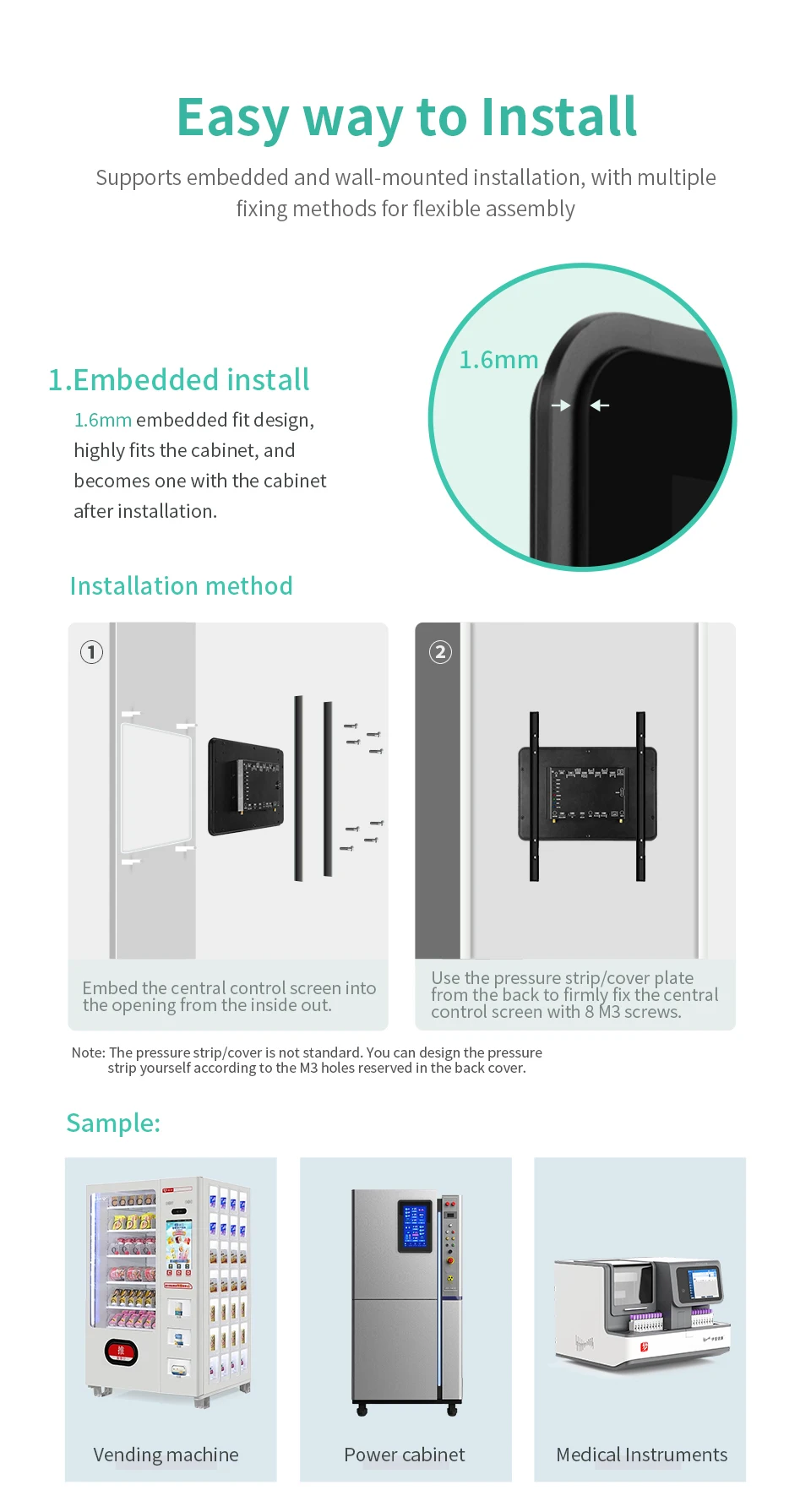

M1 series intelligent HMI Screen is based on an ARM processor, with powerful performance and compatible with multiple operating systems. It uses a 10.1-inch fully laminated IPS screen, with optional capacitive touch, and supports touch with gloves and waterproof touch. The front panel has dustproof, waterproof, and explosion-proof features. The middle frame is made of high-quality engineering plastic, which is more cost-effective. The embedded shell design and VESA mounting holes allow for flexible and diverse installation methods. There are abundant peripheral interfaces to meet the needs of more scenarios.

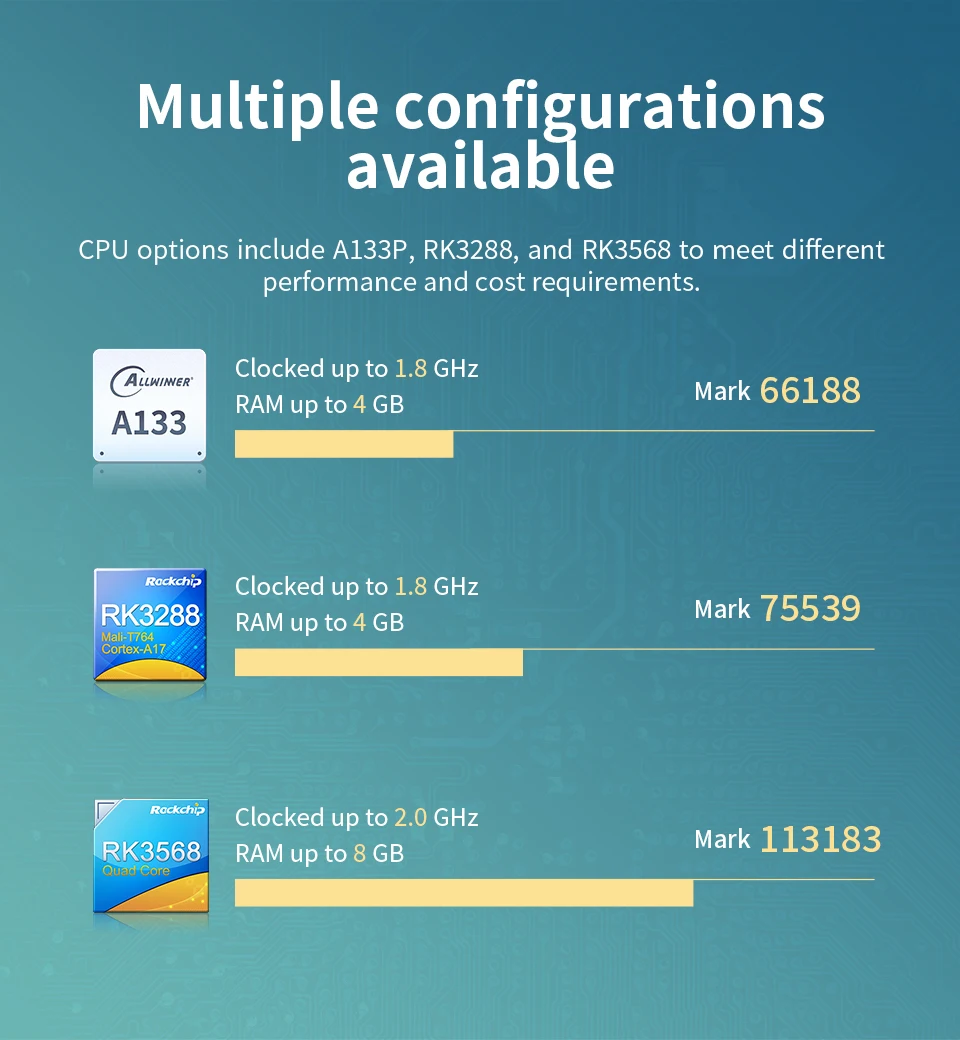

Product model can be understood based on CPU
Only difference in performance, system, and interface
