No.

Project

Index of Performance

1

Network Standard

IEEE802.3、IEEE802.3u、IEEE802.3x、

IEEE802.3ab、IEEE802.1Q、IEEE 802.1p

2

Network Medium

10/100/1000BASE-TX: 5class and above non shielded twisted pair

3

Data Distance

≤100M

4

Switch Capability

12Gbps

5

Forwarding Rate

10BASE-tx: 14880pps/port

100BASE-tx: 148800pps/port

1000BASE-tx: 1488000pps/port

6

MAC Address

MAC address table 2K

7

Port Function

Power priority mechanism, fast and forward, MAC automatic learning and aging

IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode

8

Forwarding Rate of Packet

8.93Mpps

No.

Function Item

1

Web management

Support Double IP;

Default IP:10.77.88.100

Default management IP: Obtain automatically via DHCP; can also log in the management page to set it as a static IP;

User：admin Password：admin

2

Management IP

Support static IP settings

Support DHCP dynamic acquisition

3

User Setting

Support change user name, change log-in password

4

Port Management

Support port disabling and enabling;

Support MTU setting

Support speed, duplex, and flow control settings

5

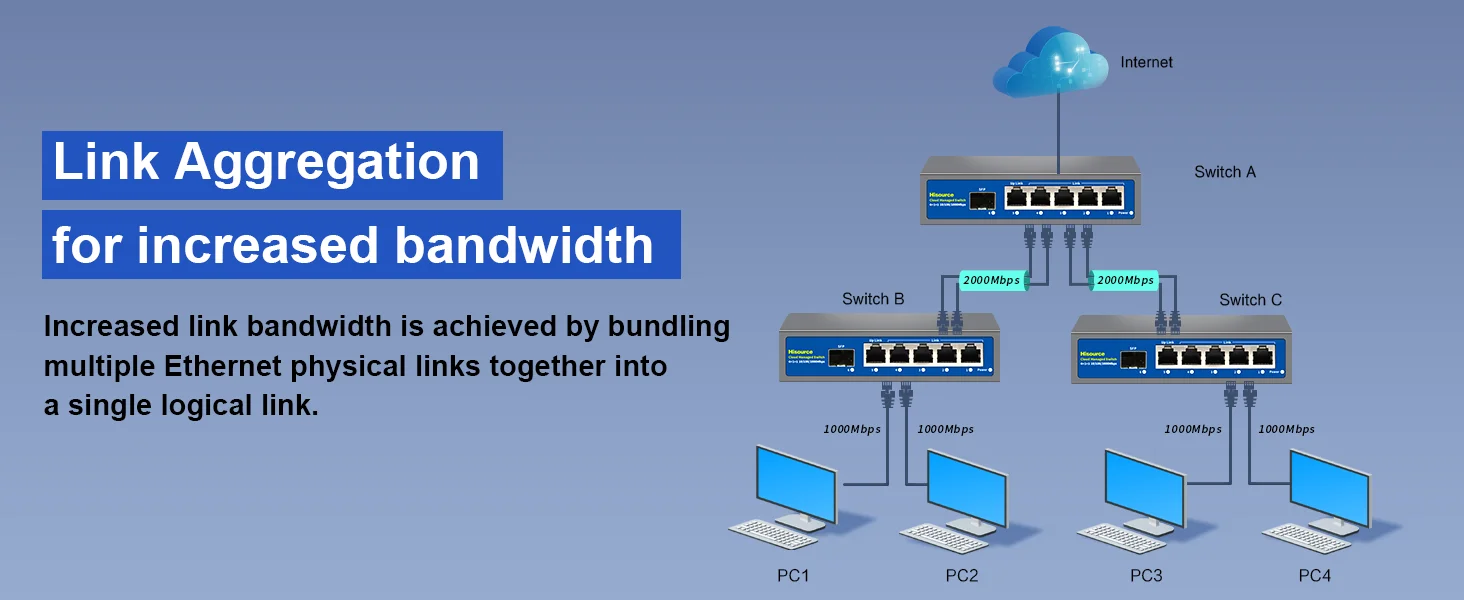

Link Aggregation

Supports up to 2 aggregation groups, with a maximum of 5 members per group;

6

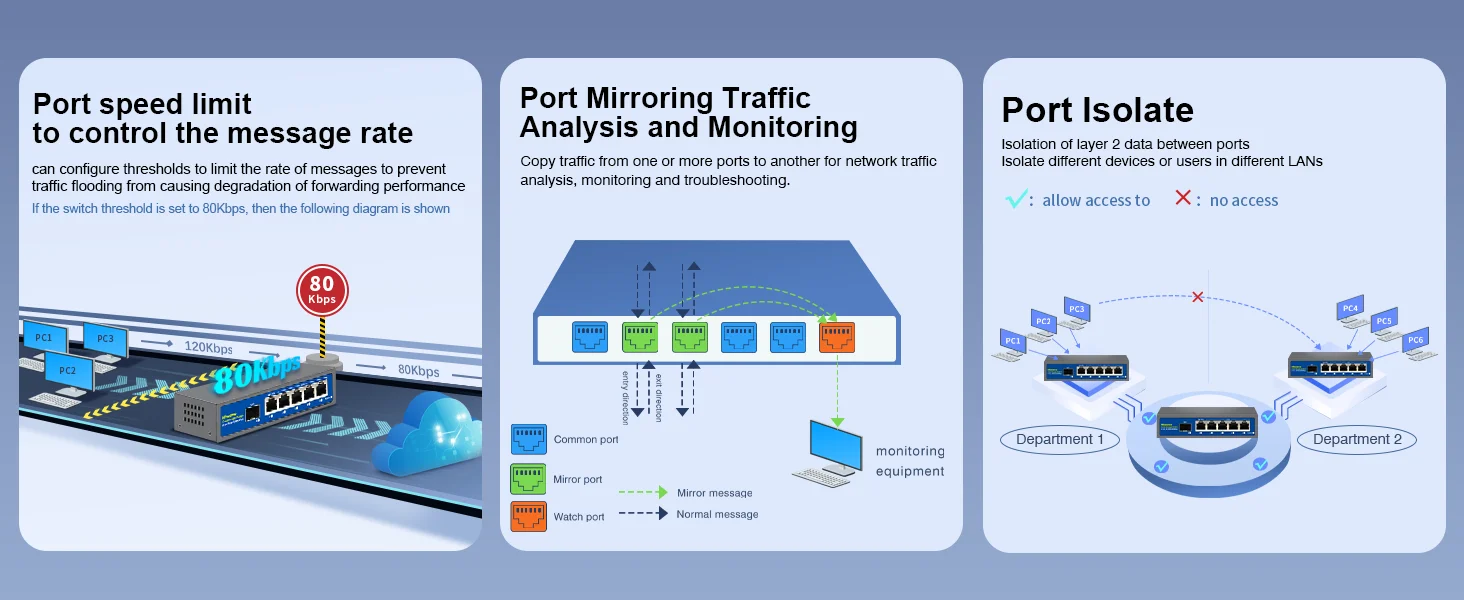

Port Isolation

Support Port Isolation

7

loopback protection

Support loopback protection

8

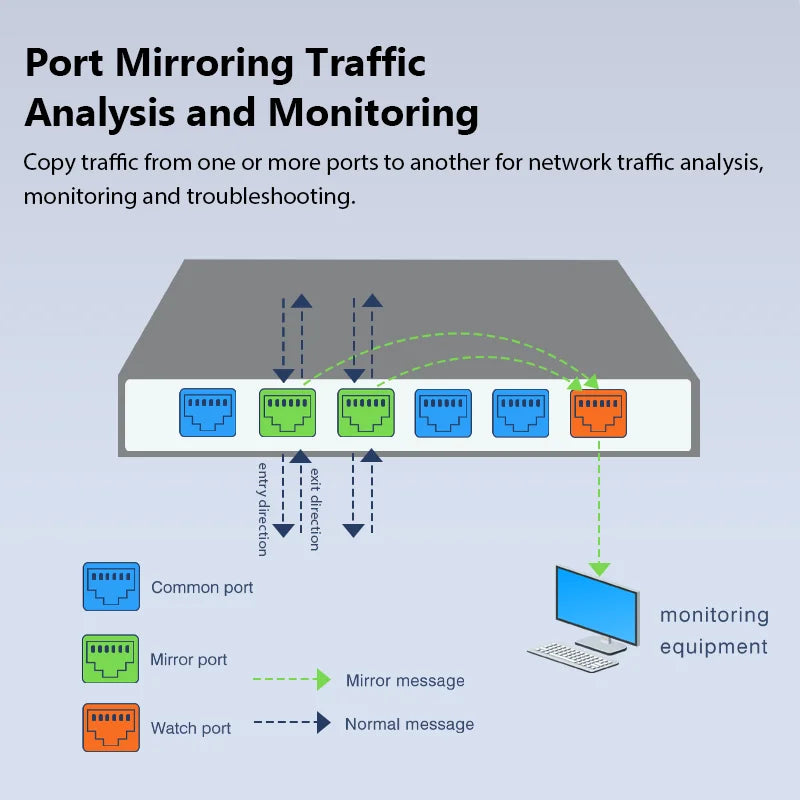

Port Mirroring

Supports up to 4 sets of mirror sessions;

Support mirroring of incoming and outgoing directional messages for ports and aggregation groups

9

Port speed limit

Support limits the speed of port’s in and out

10

EEE

Support energy-saving Ethernet protocol

11

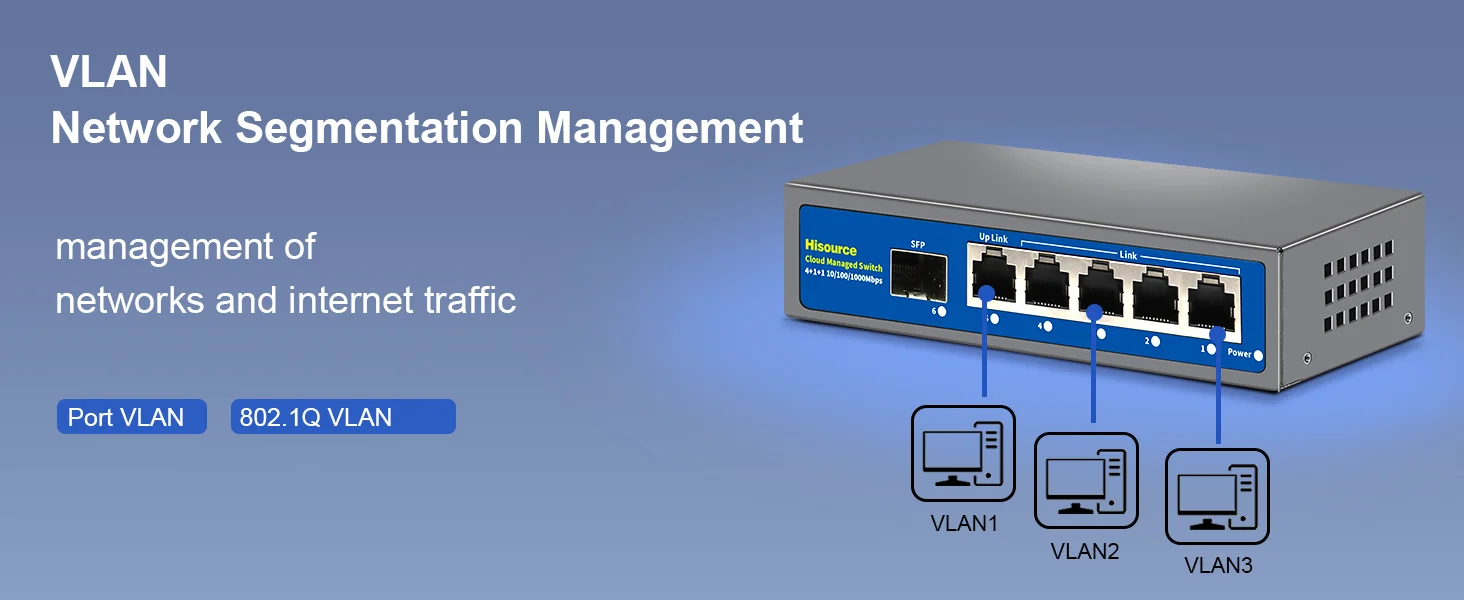

VLAN

Support port VLAN；

Support 802.1Q VLAN；

12

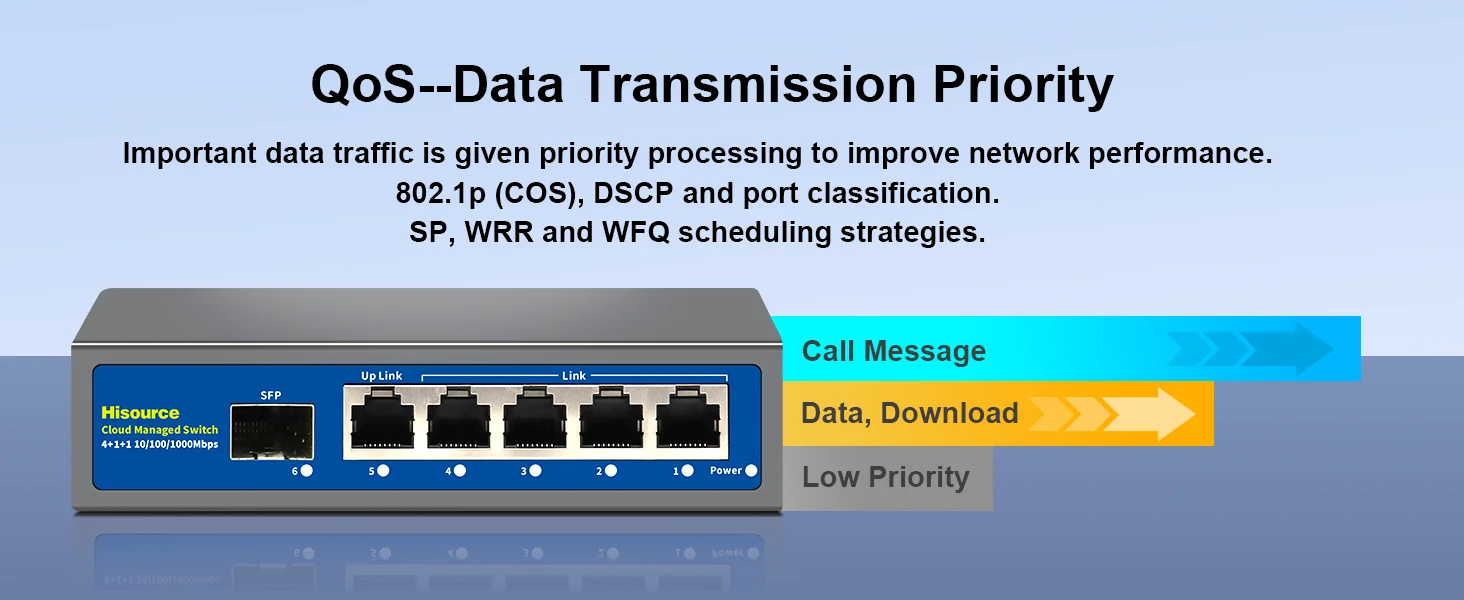

QOS

Support 802.1p (COS) classification, DSCP classification, and port classification.

Support SP, WRR, WFQ scheduling strategies

13

MAC management

Support limit on the number of port MAC address learning

Support adding and deleting static MAC addresses

Support search of MAC address

Support dynamic MAC address table viewing

14

Storm Suppression

Support storm suppression for unknown unicast, multicast, and broadcast packets

15

Traffic Monitoring

Support monitoring of the number of bytes sent and received, as well as the number of messages sent and received

16

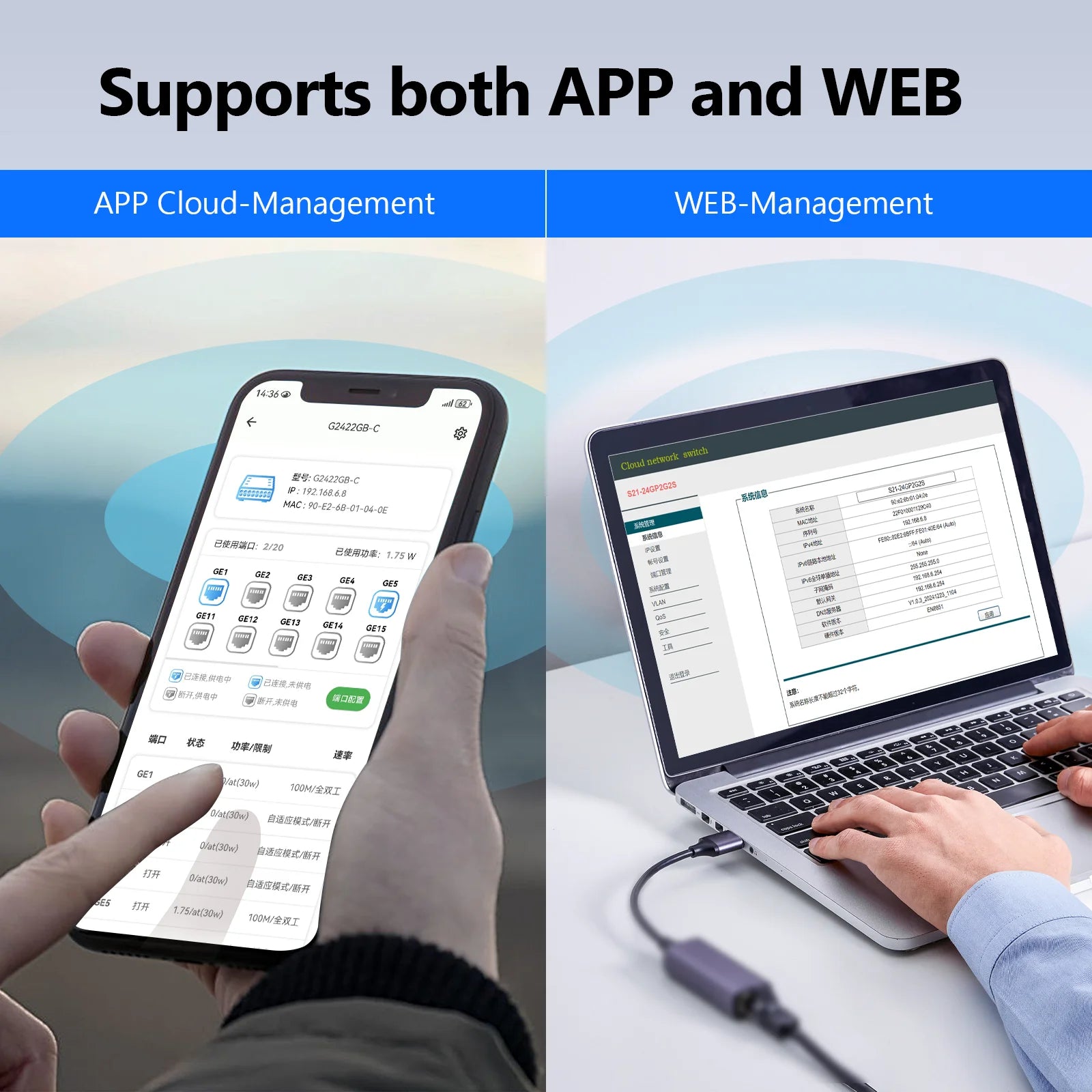

Cloud-network Link

APP cloud management

17

System Management

Support system upgrade

Support system backup and restore

Support reset

Support Web restart

Support configuration saving;

Support switching between Chinese and English

Support system name modification
