Fanless Mini Industrial PC Intel Celeron N5095 2x RS232 Serial Ports 2x Gigabit Ethernet Mini-PCIe Expansion Windows Linux
Fanless Mini Industrial PC Intel Celeron N5095 2x RS232 Serial Ports 2x Gigabit Ethernet Mini-PCIe Expansion Windows Linux
Couldn't load pickup availability
SPECIFICATIONS
Audio: Realtek ALC897
Brand Name: XCY
COM1 COM2: RS232
Certification: CE,FCC,RoHS
Cooling: Fanless Aluminum Chassis passive cooling
Display: 1x HDMI1.4, 1x VGA
Ethernet: 2x RJ45 Realtek RTL8111H GbE, support WOL/PXE
Expansion: 1x Mini PCIE slot for WiFi/4G Modules
Graphics Card Type: Integrated Card
Hard Drive Capacity: 256GB
Hard Drive Support: 1x M.2 SSD/mSATA, 1x SATA 2.5inch
High-concerned chemical: None
Memory Capacity: ≥ 4GB
Memory Type: 1x SODIMM DDR4, DDR3L (according to CPUs)
Model Number: X30G
OS Support: Windows 10, Linux, ubuntu, openwrt
Operating Temperature: -20℃ to 60℃
Origin: Mainland China
PC Dimension: 134x124x40mm
Package Includes: 1x Mini PC, 1x AC Adapter, 1x SATA cable, 1x VESA mount
Power Input: DC12V-3A/5A
Processor Brand: Intel
Processor Model: Celeron N5095/N5105, i3-5005U, i5-5200U, i5-4200U
Type: Mini Desktop,Mini PC
USB Ports: 2x USB2.0, 2x USB3.0
Use: Commercial

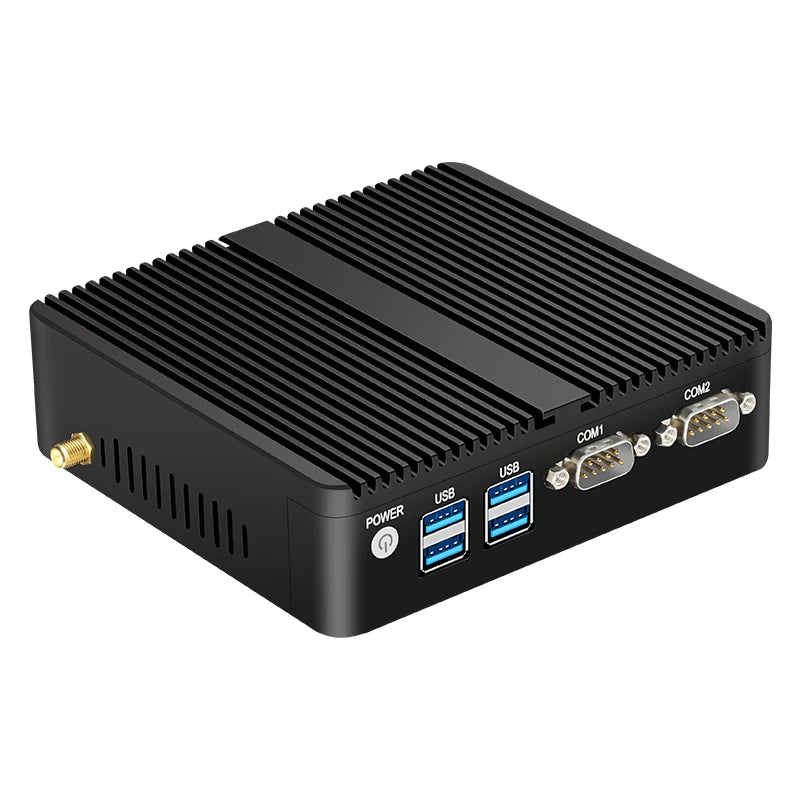

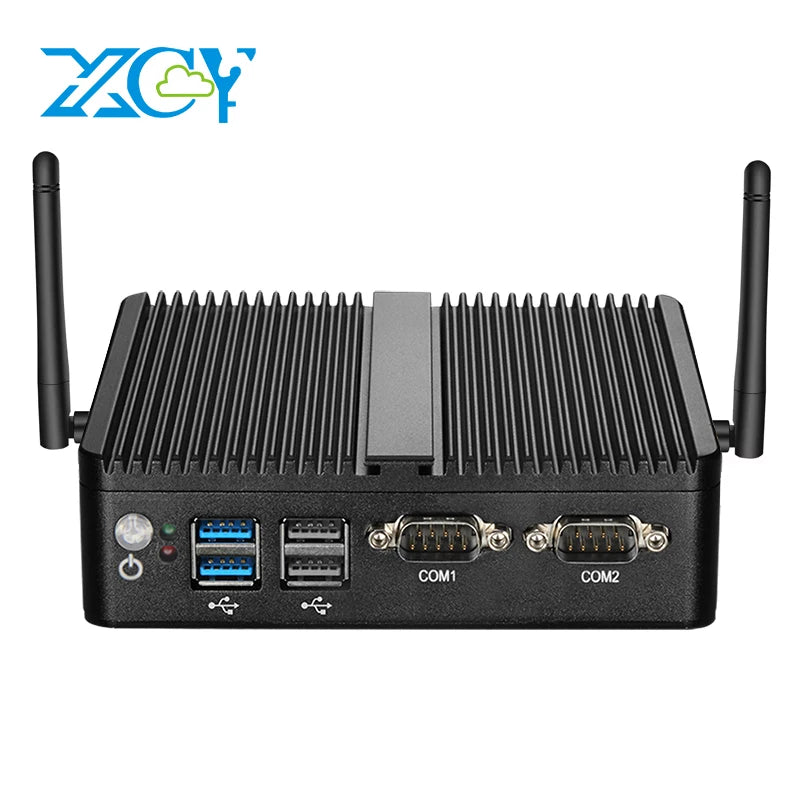

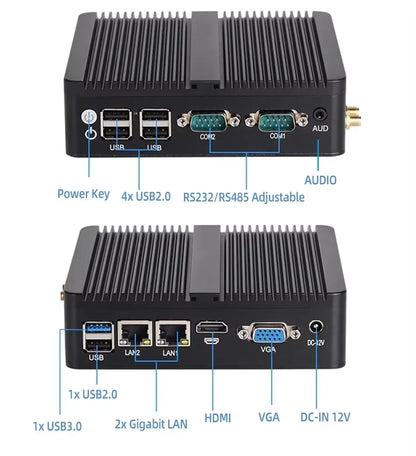

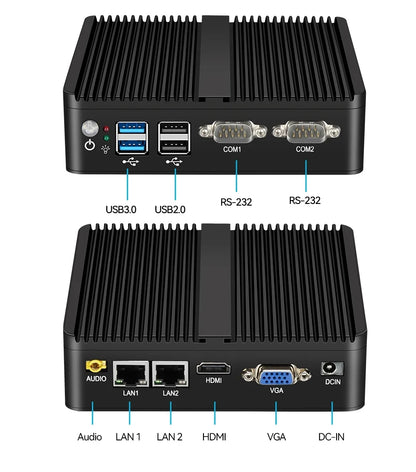

X30G Fanless Industrial Mini Computer, 2x Gigabit Ethenet, 2x COM Ports RS232, 4xUSB Ports, HDMI+VGA Display, Mini-PCIe Expansion, Support Windows, Linux, Openwrt

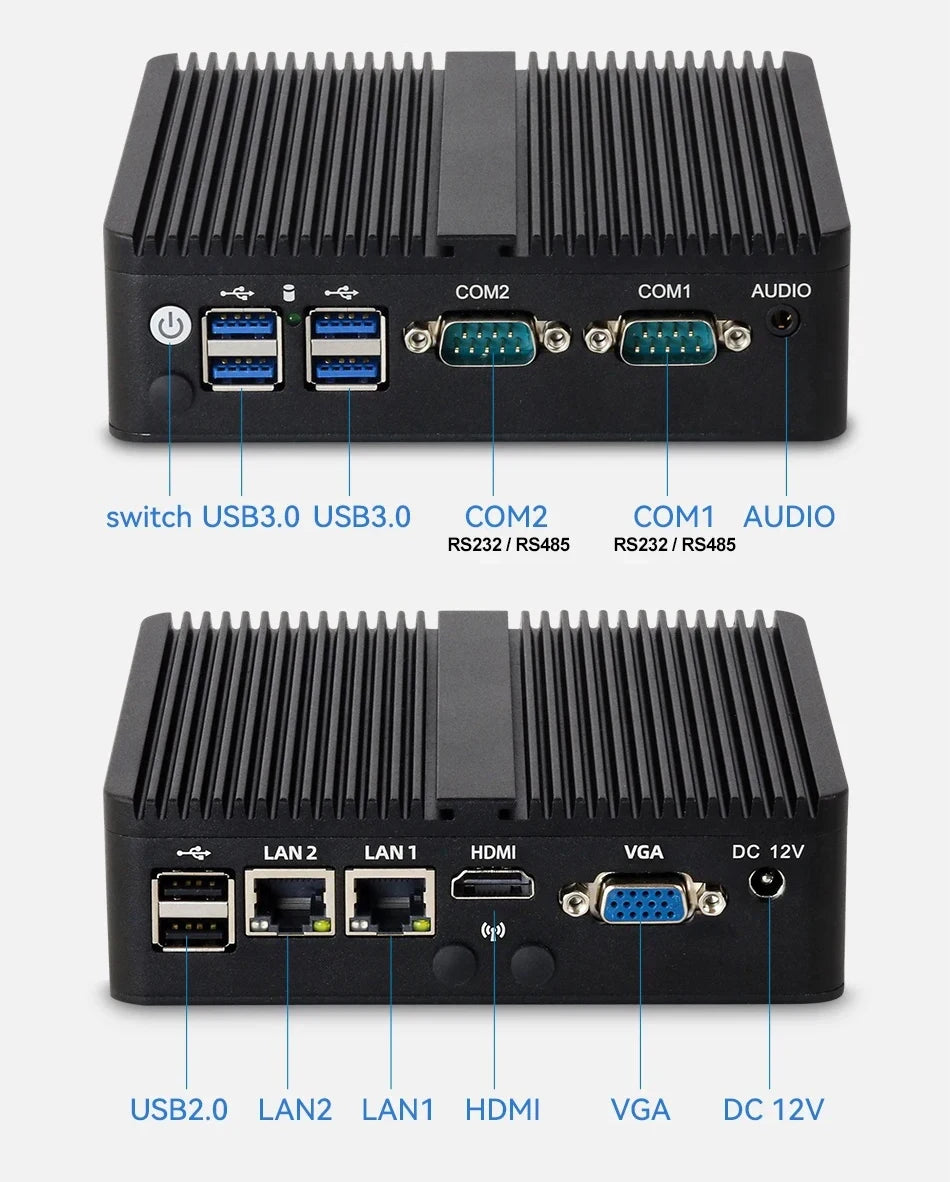

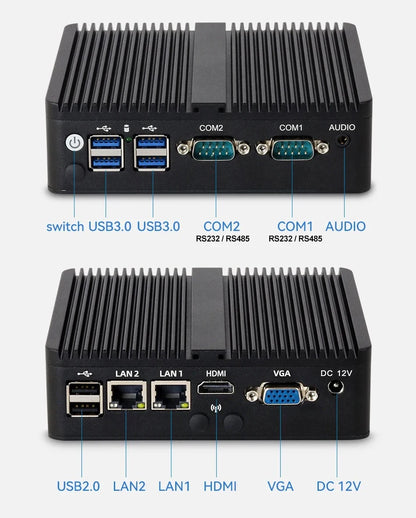

J6412 two COM ports support RS232/RS485 adjustable.
|
CPUs |
intel Celeron J6412 processor, 4 cores 4 threads, base frequency 2.0Ghz, up to 2.60GHz |
Intel Celeron N5095/N5105 Processor, 4 cores 4 threads, Base frequency 2.0GHz, up to 2.90GHz | |
Intel Celeron 2955U Processor, 2 Cores 2 Threads, Base Frequency 1.40GHz | |
Intel Pentium 3805U Processor, 2 Cores 2 Threads, Base frequency 1.90GHz | |
Intel Core i3-5005U Processor, 2 Cores 4 Threads, Base frequency 2.0GHz | |
intel Core i5-4200U Processor, 4 Cores 4 Threads，Base frequency 1.60GHz, up to 2.60GHz | |
intel Core i5-5200U Processor, 4 Cores 4 Threads，Base frequency 2.20GHz, up to 2.70GHz | |
intel Core i7-4500U Processor, 4 Cores 4 Threads，Base frequency 1.80GHz, up to 3.40GHz | |
Memory Types |
N5095/N5105/J6412:1 x SODIMM DDR4, max support to 16GB |
Other CPUs: 1x SODIMM DDR3L 1.35V, max support 8GB | |
Hard Disk |
N5095/N5105:support 1 x M.2 2280 NVMe SSD, 1 x 2.5 inch HDD/SSD J6412 support 1x M.2 SATA SSD 2280, 1x 2.5 inch HDD/SSD |
Other CPUs: support 1x mSATA SSD, 1x 2.5 inch HDD/SSD | |
Graphics |
Intel HD Graphics |
Ethernet |
2x Realtek 8111H Gigabit Ethernet, support PXE, Wake on LAN |
Audio Chip |
Realtek ALC897 |
N5095/N5105: 1x MIC, 1x SPK,3.5mm jack, | |

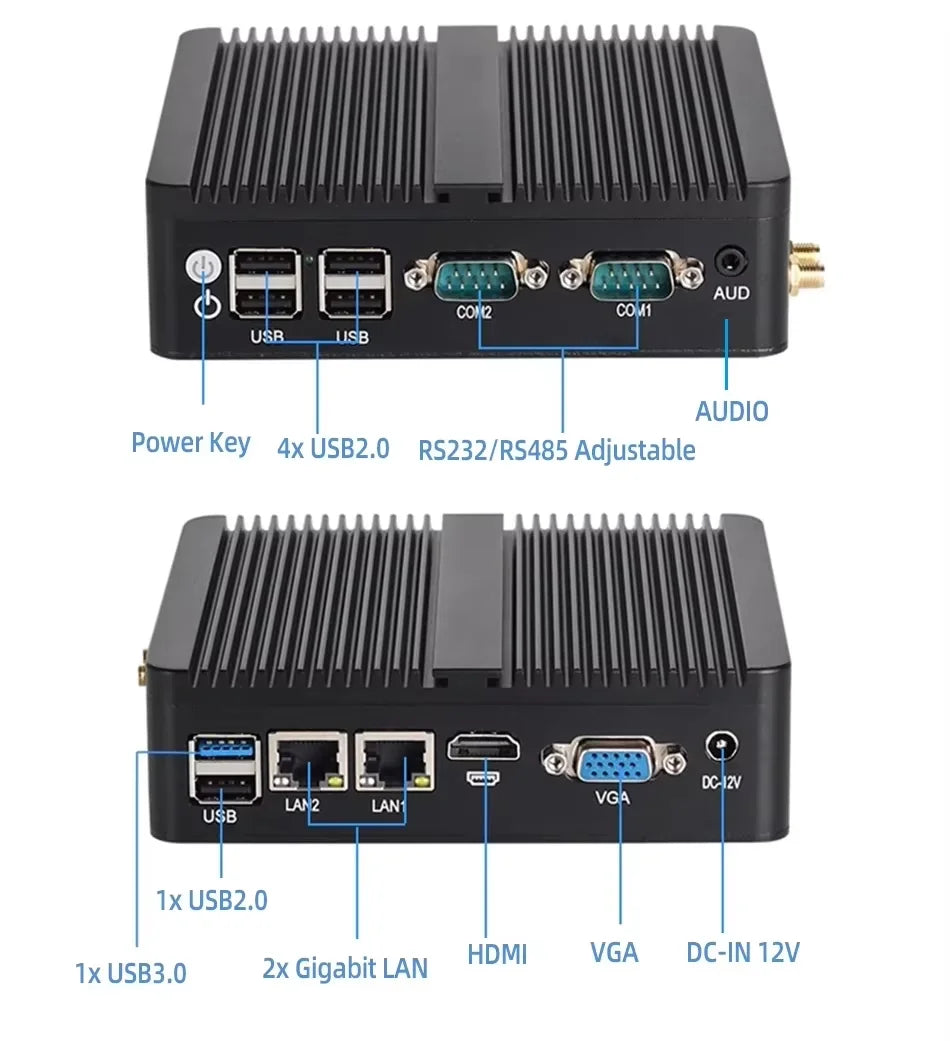

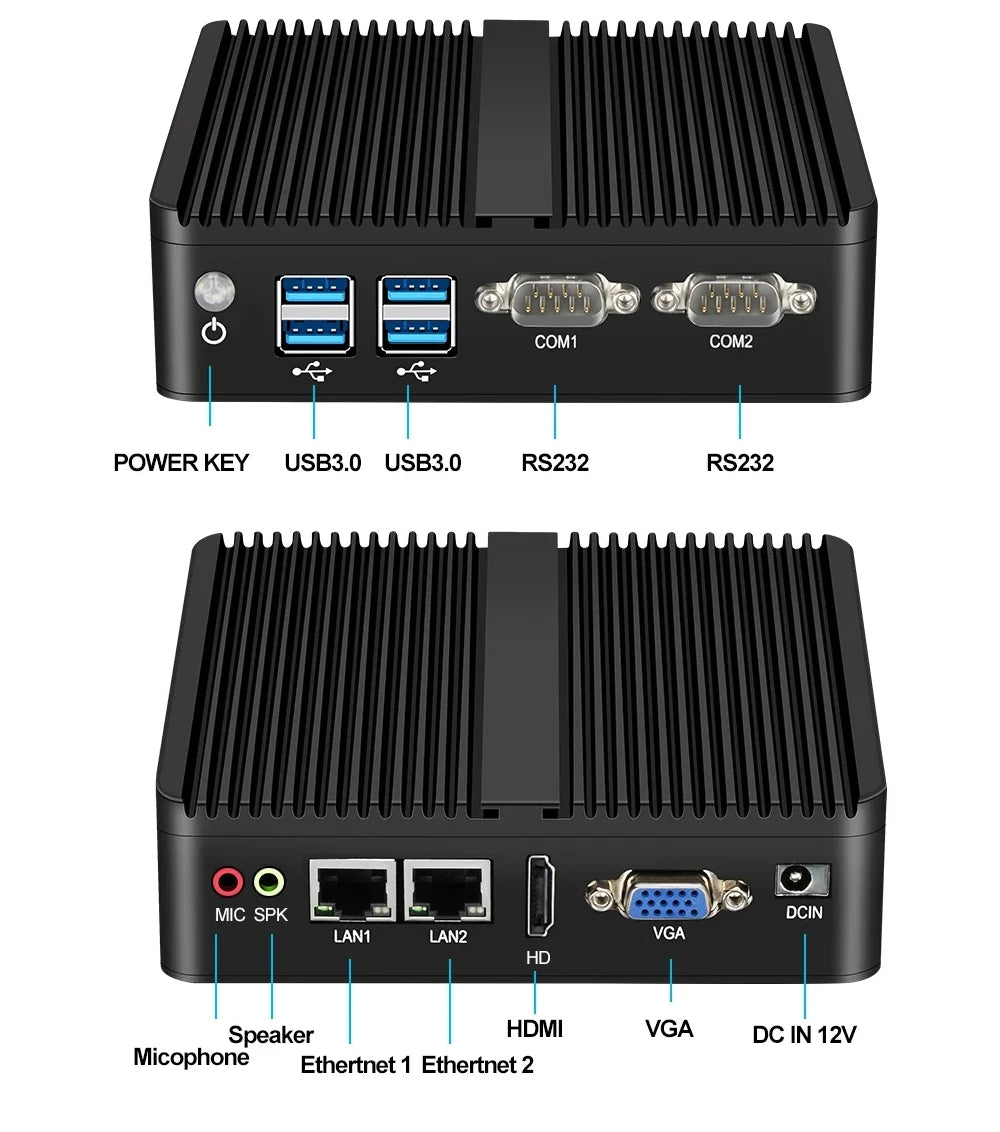

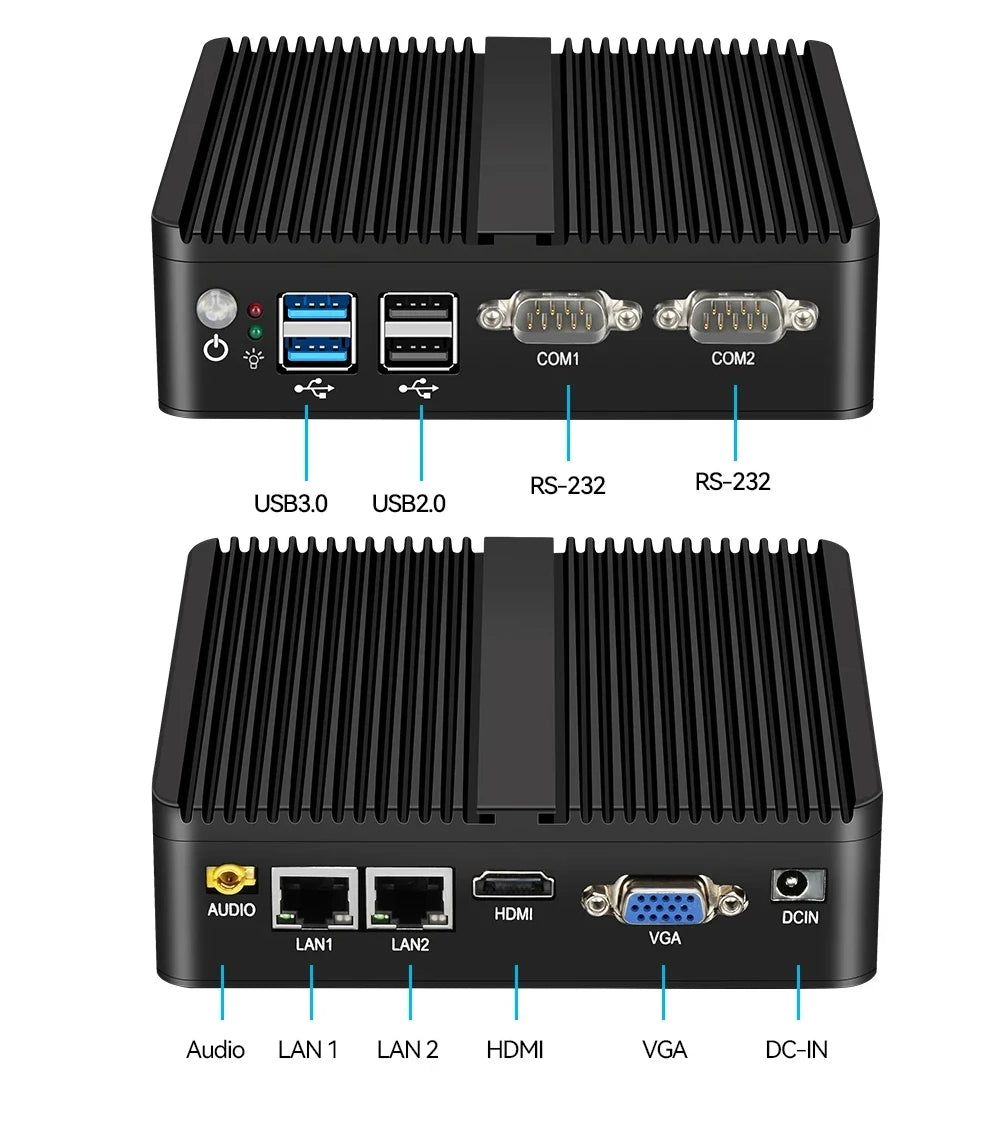

Front I/O |
4x USB ports |

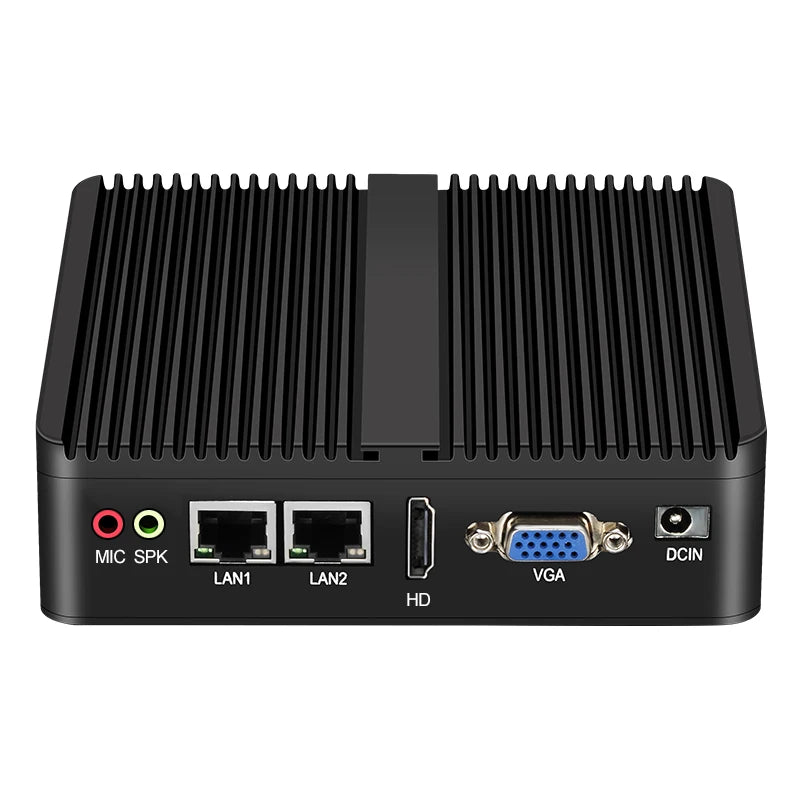

Rear I/O |
1 x HDMI |
Expansion |
N5095/N5105: 1x M.2 2230 slot for WiFi/4G modules |
Power Adapter |
DC12V-3A |
OS Support |
Windows 7 |
Windows 10 | |
Linux/Ubuntu/CentOS/OpenWrt | |
Features |
Automatically power on when AC power restored |
Working Temperature |
﹣20℃ TO ﹢60℃ |
Storage Temperature |
﹣20℃ TO ﹢60℃, 5%~95% non-condensing |
Dimension |
134x134x40mm |
Construction |
Fanless passive cooling aluminum chassis |
Package |
1 x Mini PC |
Attention:
1). Buy mini PC No RAM No SSD option, mini PC without WiFi module and antennas preinstalled, if you need add WiFi, please contact us!
2). Buy mini PC with RAM and SSD option, we pre-installed WiFi module and antennas to mini PC;
