Fanless Industrial Mini PC Celeron J6412 J1900 J2900 N2840 2x COM RS232/RS485 2x Ethernet WiFi 4G LTE SIM Slot Windows Linux
Fanless Industrial Mini PC Celeron J6412 J1900 J2900 N2840 2x COM RS232/RS485 2x Ethernet WiFi 4G LTE SIM Slot Windows Linux
Couldn't load pickup availability
SPECIFICATIONS
Audio: Realtek ALC897, 1x combo audio jack
Brand Name: XCY

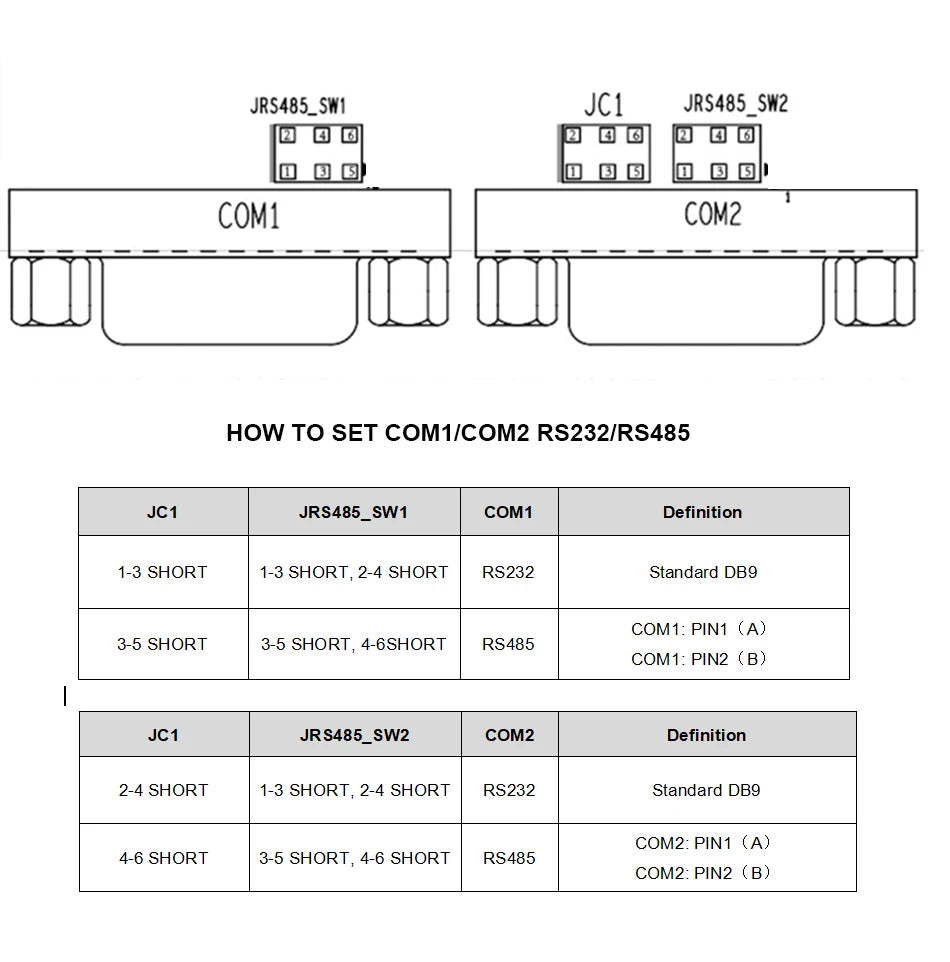

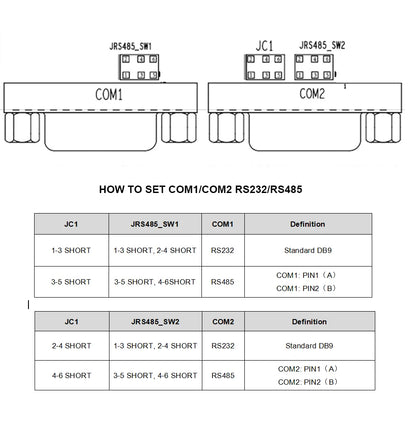

COM1 COM2: RS232/RS485 adjustable
Certification: CE,FCC,RoHS
Cooling: Fanless Aluminum Chassis passive cooling
Display: 1x HDMI1.4, 1x VGA
Ethernet: 2x RJ45 Realtek RTL8111H GbE, support WOL/PXE
Expansion: 1x Mini PCIE slot for WiFi/4G Modules
Graphics Card Type: Integrated Card
Hard Drive Capacity: 128 GB
Hard Drive Support: 1x mSATA, 1x SATA 2.5inch
High-concerned chemical: None
J6412 Support: 1x M.2 NVME/SATA SSD, 1x SATA 2.5 inch
Memory Capacity: ≥ 4GB
Memory Type: 1x SODIMM DDR4, DDR3L (according to CPUs)
Model Number: X30G-2COM485
OS Support: Windows 10, Linux, ubuntu, openwrt
Operating Temperature: -20℃ to 60℃
Origin: Mainland China
PC Dimension: 134x124x34mm
Package Includes: 1x Mini PC, 1x AC Adapter, 1x SATA cable, 1x VESA mount
Power Input: DC12V-3A
Processor Brand: Intel
Processor Main Frequency: 2.0GHz
Processor Model: Celeron J6412 J4125 J1900 N2840, Pentium J2900
SIM slot: 1x SIM slot onboard
Type: Mini Desktop,Mini PC

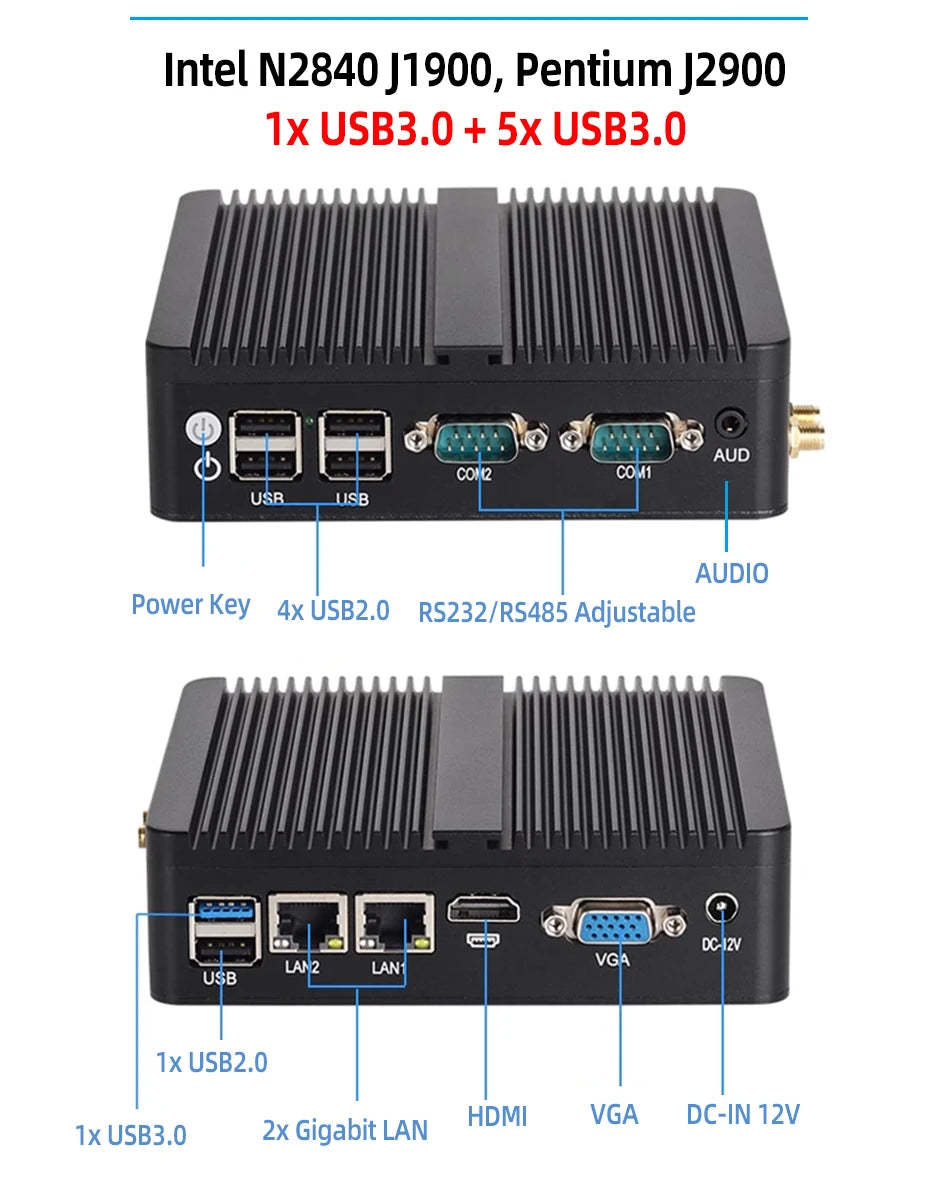

USB Ports: 4x USB3.0, 2x USB2.0 (J2900 J1900/N2840: 1xUSB3.0, 5x USB2.0)
Use: Commercial

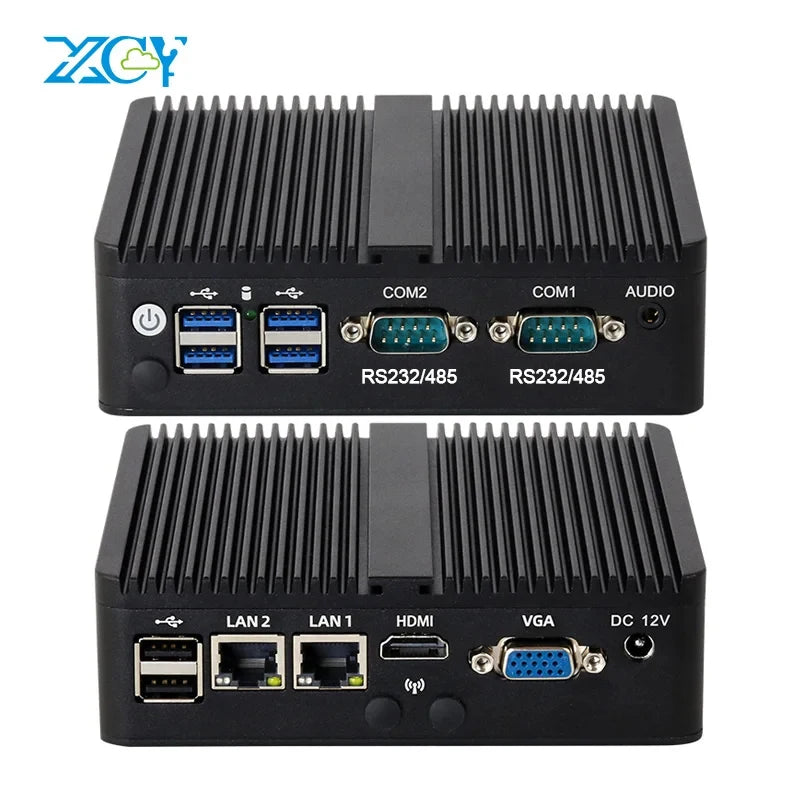

X30G Fanless Industrial Mini Computer, 2x Gigabit Ethenet, 2x COM Ports ( RS232/RS485 adjustable ), Support WiFi/4G Modules
CPUs |
Intel Celeron J6412 Processor, 4 cores 4 threads, Base frequency 2.0GHz, up to 2.60GHz Intel Celeron J4125 Processor, 4 Cores 4 Threads, Base Frequency 2.0GHz, up to 2.70GHz
Intel Celeron J1900 Processor, 4 Cores 4 Threads, Base frequency 2.0GHz, up to 2.42GHz Intel Celeron N2840 Processor, 2 Cores 2 Threads,Base frequency 2.16GHz, up to 2.58GHz intel Pentium J2900 Processor, 4 Cores 4 Threads Base frequency 2.41GHz, up to 2.66GHz |
Memory Types |
J6412/J4125: 1 x SODIMM socket DDR4, J6412 max support to 16GB 3200MHz, J4125 max support to 8GB 2400MHz J1900/N2840/J2900: 1x SODIMM DDR3L socket, max support 1333/1600Mhz 8GB |
Hard Disk |
J6412 support 1 x M.2 key-M 2280 NVMe/SATA SSD ( defaulted install this type SSD ) J4125/J1900/N2840/J2900 support 1x mSATA SSD (defaulted install this type SSD) + 1x 2.5inch SATA3.0 HDD/SSD |
Graphics |
Intel HD Graphics ( based on processor ) |
Audio Chip |
Realtek ALC897, 7.1 channel HI-FI audio controller |

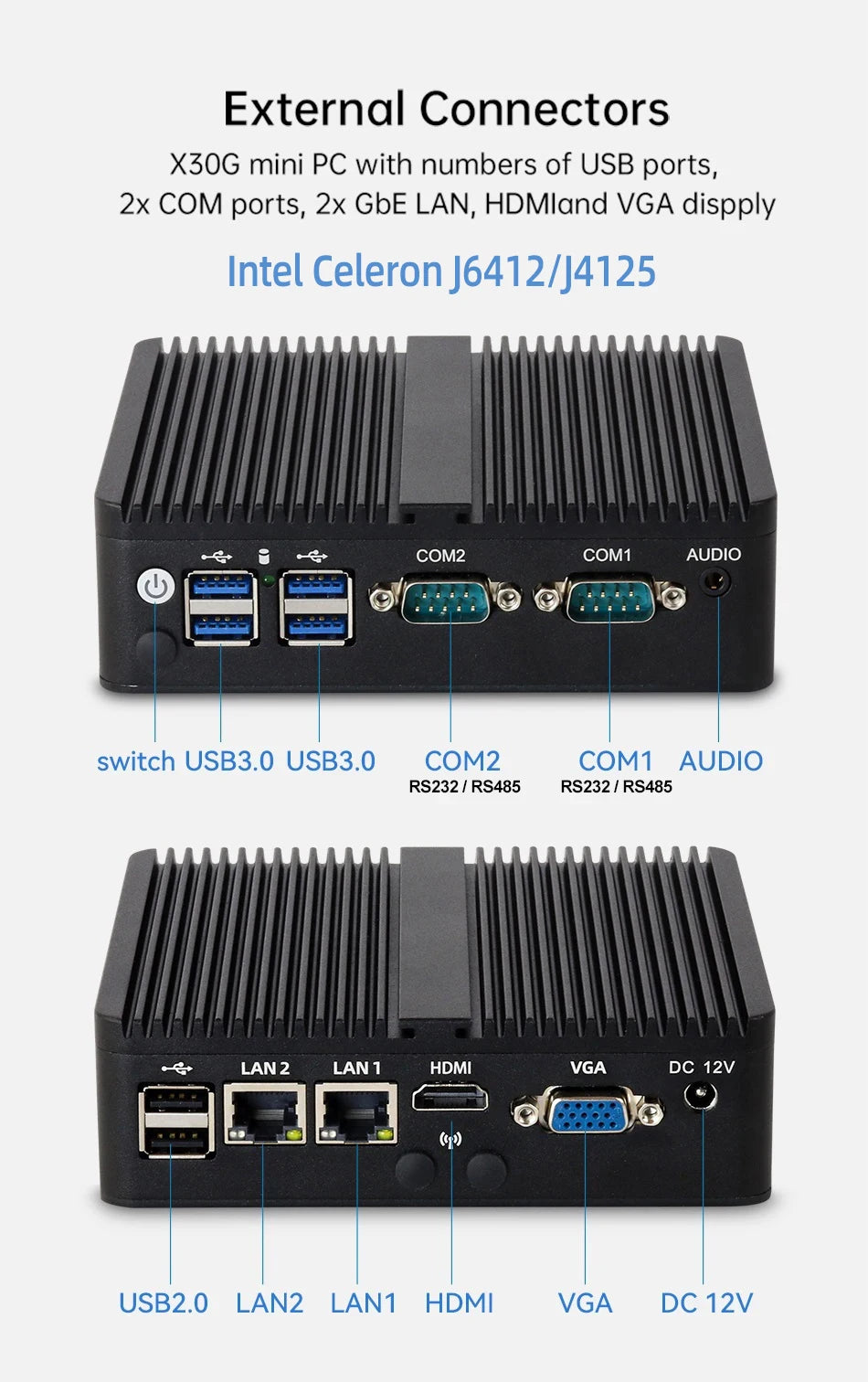

Front I/O |
4 x USB3.0 (J1900/N2840/J2900:1x USB3.0, 3x USB2.0) |
Rear I/O |
1 x HDMI 1.4 |
Internal I/O |
1 x mini PCIe socket for WiFi/3G 4G LTE modules |
Power Adapter |
DC12V-3A |
OS Support |
Windows 7 Windows 8.1 Windows 10 ( J4125/J6412 don't support Windows 7, Windows 8.1) |
Features |
Support WOL, PXE, Automatically power on when power input |
Working Temperature |
﹣20℃ TO ﹢60℃ |
Storage Temperature |
﹣20℃ TO ﹢60℃, 5%~95% non-condensing |
Dimension |
134x134x40mm |
Construction |
Fanless passive cooling aluminum chassis |
Package |
1 x Mini PC |
Attention:
1). Buy mini PC No RAM No SSD option, mini PC without WiFi module and antennas preinstalled, if you need add WiFi, please contact us!
2). Buy mini PC with RAM and SSD option, we pre-installed WiFi module and antennas to mini PC;
3). All options Mini PC without 4G LTE module and SIM card pre-installed, if you need to add 4G LTE module to mini PC, please contact us!
Attention:
1). Buy mini PC No RAM No SSD option, mini PC without WiFi module and antennas preinstalled, if you need add WiFi, please contact us!
2). Buy mini PC with RAM and SSD option, we pre-installed WiFi module and antennas to mini PC;
3). All options Mini PC without 4G LTE module and SIM card pre-installed, if you need to add 4G LTE module to mini PC, please contact us!
