8th gen Intel Core i7-8550U i5-8250U Fanless Mini PC HDMI VGA RS232 COM Windows 10 Pro Industrial Rugged ITX Mute Computer 4G

8th gen Intel Core i7-8550U i5-8250U Fanless Mini PC HDMI VGA RS232 COM Windows 10 Pro Industrial Rugged ITX Mute Computer 4G

$770.00 USD
$0.00 USD $770.00 USD
Sale Sold out
Color
Bundle

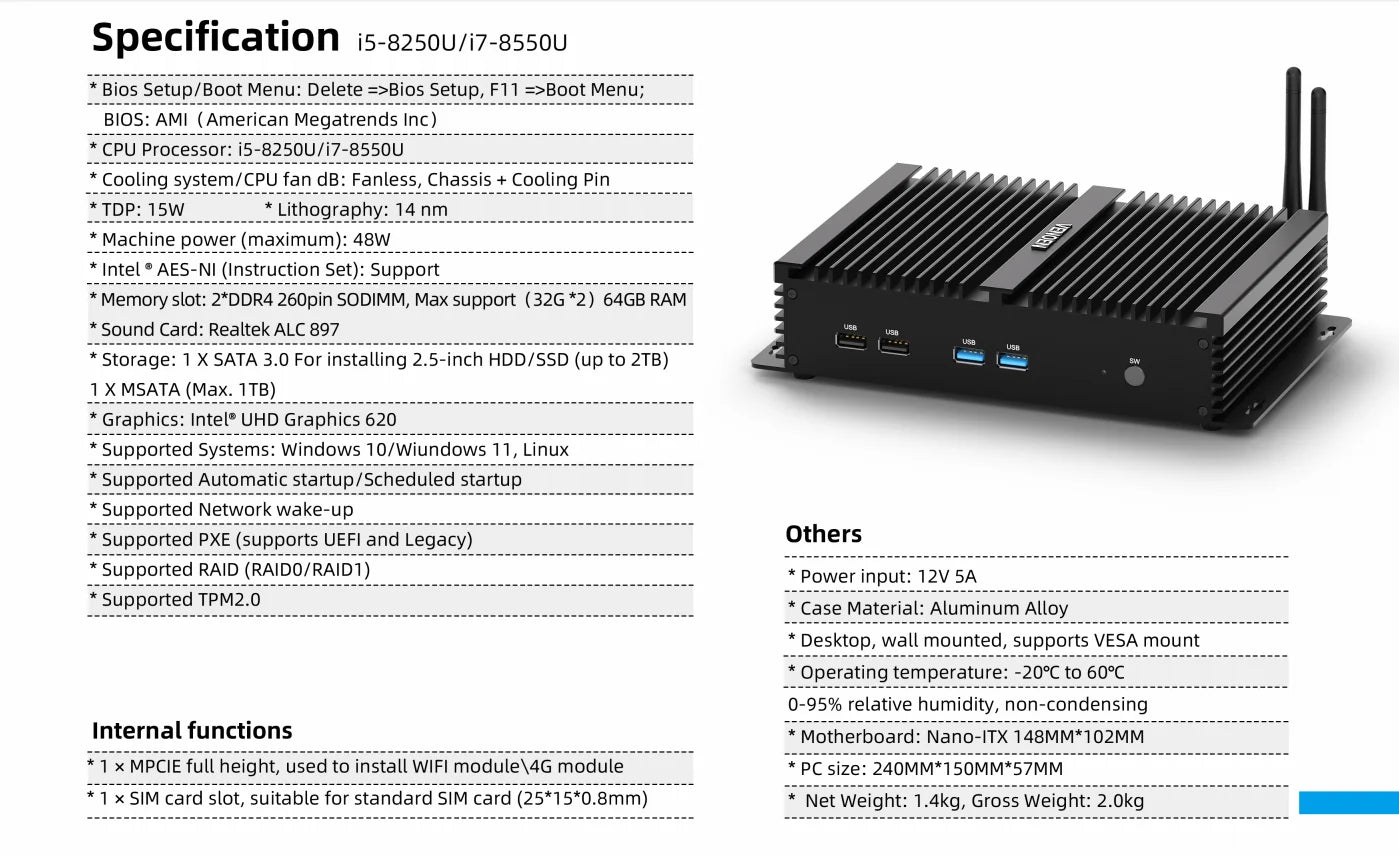

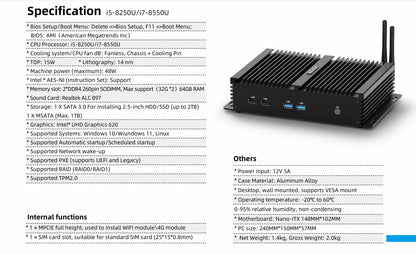

SPECIFICATIONS

Bluetooth: Support Bluetooth 3.0/4.0(Needs extra cost)

Brand Name: VENOEN

COM Port: 6*R232 COM Port

Certification: CE,FCC,RoHS,CE&FCC&ROSH

Display Port: 1*HDMI+1*VGA

Graphics Card: Intel UHD Graphics 620

Graphics Card Type: Integrated Card

Hard Drive Capacity: 1TB

High-concerned chemical: None

LAN Port: 2*RJ45 2.5G LAN Port

Memory Capacity: 32 GB

Model Number: K4

Origin: Mainland China

Processor Brand: Intel

Processor Model: i5/i7 8th gen

Stability: Support 7*24 Hours Operation

Type: Mini Desktop,Mini PC

USB Port: 4*USB 3.0+2*USB 2.0

Use: Commercial

Warranty: 30 Days free replacement 3 Years free repair

Wireless: 300M WiFi dual antennas

Description

Core i5 8250U Industrial Fanless Mini ITX PC RS232 485 COM Port Dual Display i225V Intel Factory Computer Linux SIM Card Slot



Features:

1. On-board with Intel Core processors, enough performance for your computing needs, it's one high cost-effective mini PC;

2. Support Windows 10/11, Linux, Ubuntu OS, and more;

3. Support two hard disk, one Msata SSD and one 2.5 inch HDD/SSD;

4. Ultra-compact and lightweight mini PC 1.4kg;

5. Support Wake-on-LAN, Automatically power on when power failure, support virtualization.

6.One embedded SIM card slot onboard for 3G/4G WiFi module.


Attention:

1). Buy mini PC No RAM No SSD option, mini PC without WiFi module and antennas preinstalled, if you need add WiFi, please contact us!

2). Buy mini PC with RAM and SSD option, we pre-installed WiFi module and antennas to mini PC;

3). All options Mini PC without 4G LTE module and SIM card pre-installed, if you need to add 4G LTE module to mini PC, please contact us!


Processor Proformance （All support AES-NI）

Processors

Cores & Threads

Cache

Base Frequency

Max Turbo Frequency

Graphics

Core i5-4200U

2 Cores 4 Threads

3M

1.60 GHz

2.60 GHz

Intel® HD Graphics 4400
Core i5-8250U

4 Cores 8 Threads
6M
1.60 GHz
3.40 GHz
Intel® UHD Graphics 620
Core i7-8550U
4 Cores 8 Threads

8M

1.80 GHz

4.00 GHz

Intel® UHD Graphics 620

CPUs

Intel Core i5-8250U (4 cores, 8 threads, base frequency: 1.6GHz, max turbo frequency: 3.4GHz, L3 cache: 6MB)

Intel Core i7-8550U (4 cores, 8 threads, base frequency: 1.8GHz, max turbo frequency: 4.0GHz, L3 cache: 8MB)

Intel Core i5-4200U (2 cores, 4 threads, base frequency: 1.6GHz, max turbo frequency: 2.6GHz, L3 cache: 3MB)

Memory Types

8250U/8550U:2 x DDR4 260pin SO-DIMM, maximum memory capacity 64G (32G *2)

4200U:2 x DDR3L 204pin SO-DIMM, maximum memory capacity 16G

Hard Disk

support:1 x MSATA (up to 1TB) +

1 x SATA3.0, used to install 2.5-inch HDD/SSD (up to 2TB)

Graphics

8250U:Intel® Iris® Graphics 550
8550U:Intel® HD Graphics 620
4200U:Intel® HD Graphics 4400

Audio Chip

8250U/8550U:Realtek ALC 897

4200U:Realtek ALC 662

support MIC IN/Line Out

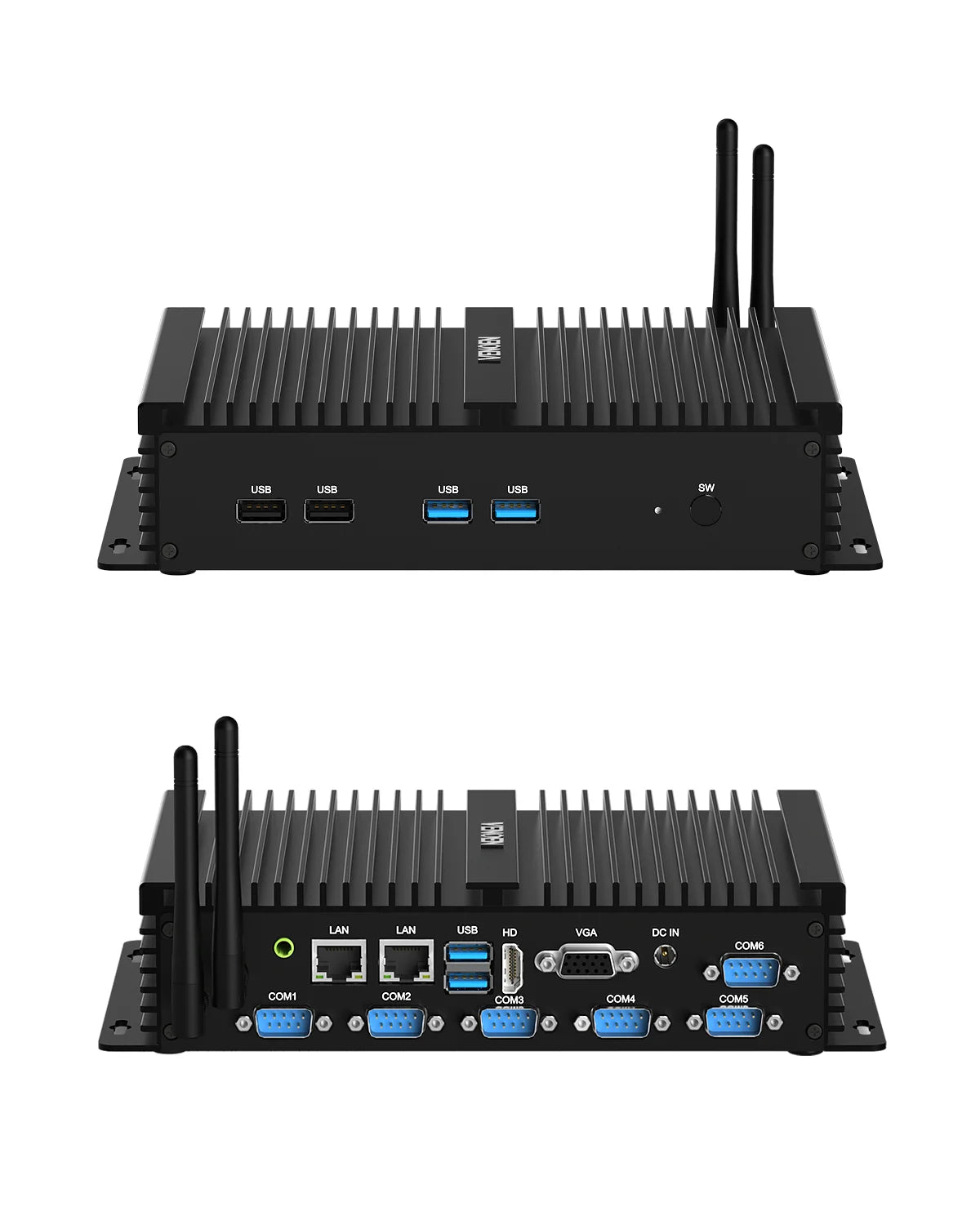

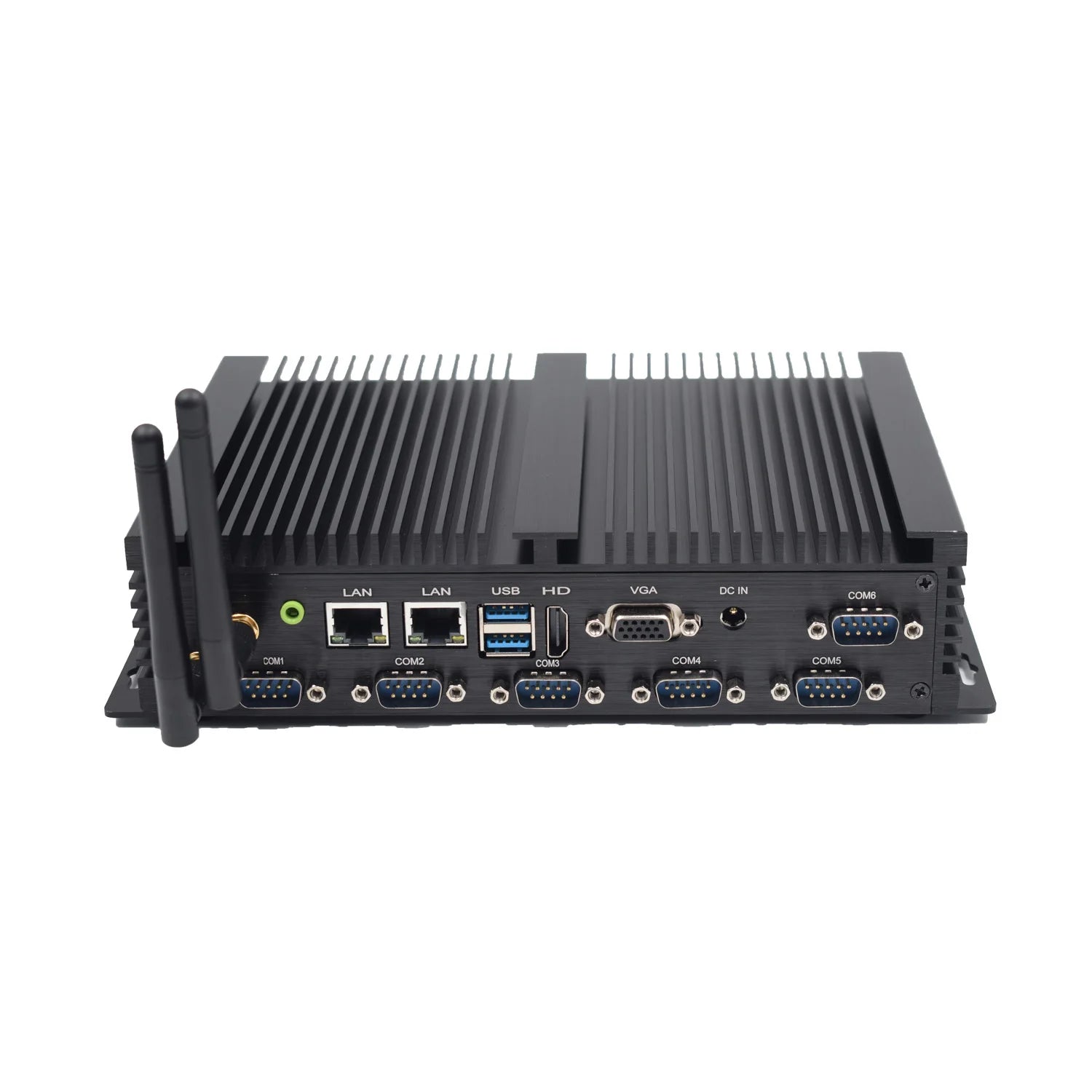

Front I/O

2 x RJ45 intel i225-V

1 x SPK

1 x HDMI

2 x USB 3.0(Type-A)

1 x VGA

1 x 12V/5A DC IN

6 x DB9 pin COM RS232

2 x Wi-Fi antennas

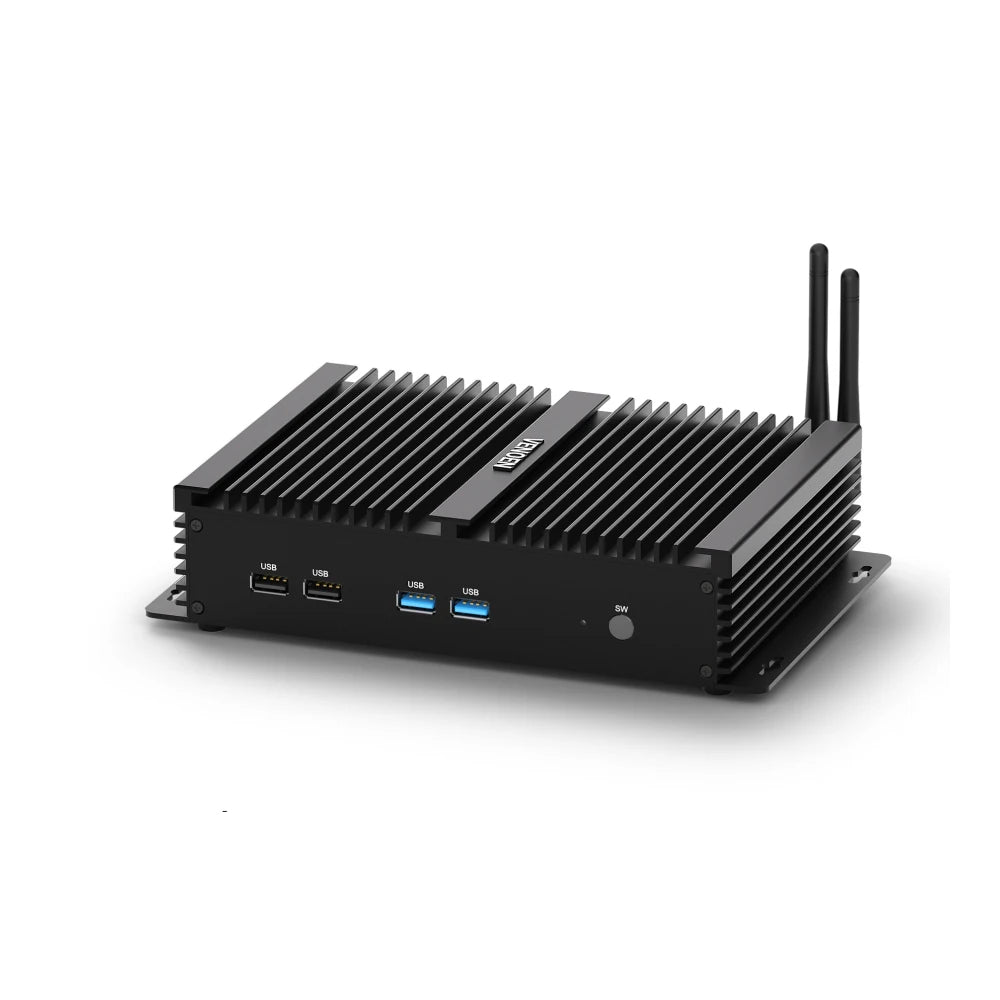

Rear I/O

1 x On/Off Switch

2 x USB 2.0(Type-A)

2 x USB 3.0(Type-A)

Internal I/O

1 xFull-height MPCIE, used for mounting WIFI module and 4G module

1 xSIM card slot, compatible with standard SIM card (25*15*0.8mm)

Power Adapter

DC 12V 5A

OS Support

Windows 7（Only 4200U is supported.）

Windows 10 Pro/IOT

Windows 11 Pro/IOT

Linux/Ubuntu/Pfsense/Opnsense

(Ubuntu\Debian\CentOS\Fedora\openSUSE\Arch Linux)

Features

one key restore, wake up on LAN, Auto power on, PXE (supports UEFI and Legacy), RAID (RAID0/RAID1),

8250U/8550U:TPM2.0

Working Temperature

﹣20℃TO﹢60℃

Storage Temperature

﹣20℃TO﹢60℃, 10%~85% non-condensing

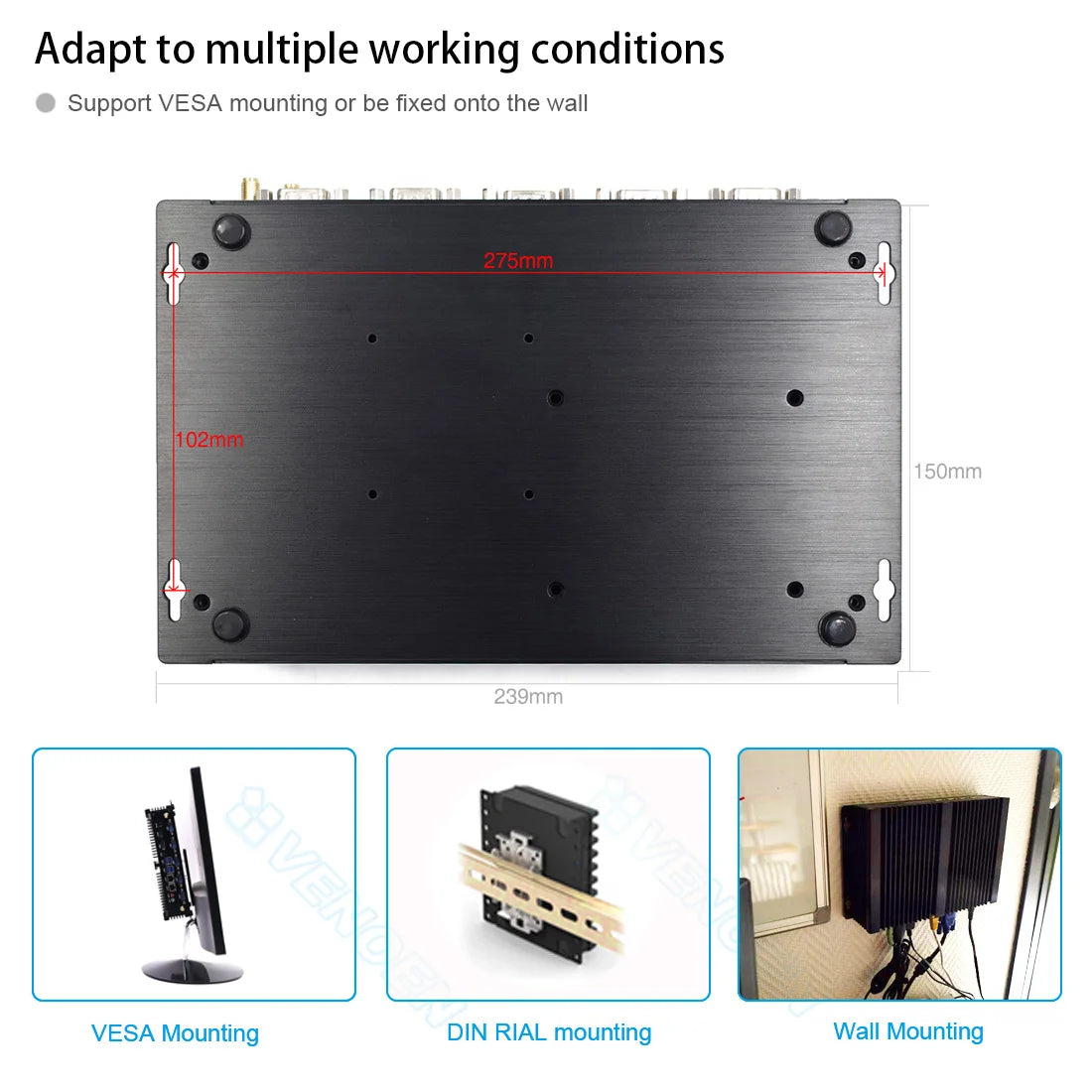

Dimension

240*150*57MM

Construction

Fanless passive cooling aluminum chassis

Package

1 x Mini PC

1 x AC adapter

1 x Power cord

1 x SATA cable

1 x User guide
SIM & 3G/ 4G Module

  • Venoen PC supports it but do not supply any SIM card and LTE module. You should buy them locally and test by yourself. LTE module is necessary, don't forget it.

  • Mini PCIE slot support Wi-Fi module (Half Mini PCIE) by default. If you wanna install LTE module, please leave message that we will move the screw to make a full mini pcie slot for it.

  • When you buy LTE module, please get details like drivers from the supplier.

  • Below HUAWEI LET Module (ME909s-120) is for reference. All orders come without it.

Kind reminder
1. Barebone (No Ram No HD No WiFi) package DO NOT include WiFi and Antenna, if you need, please contact us.
2. PC had best to use Samsung, SKhynix, Micron etc original brand accessories, We DO NOT compensate for buyer's own ram and hard drive and DO NOT compensate for man-made damage and faulty.
3. If you need printe OEM logo in your mini pc, please send us the HD picture.
4. Please make sure the shipping address, zip code and tel-number are correct before payment.
5. All SIM-enabled mini PCs need to purchase additional 3G / 4G modules.
About Tax
1. Buyers are fully responsible for paying fees involved, such as remote dispatching fees, storage costs, brokerage, TAX or VAT etc.
2. If you want to declare real price value, must leave a message to note when you make order.
3. Due to the tax problem, buyer refuse to receive the goods, buyer need to be fully responsible for the freight back and forth.Thank you for you cooperation.
About Feedback
1. If you are satisfied with our product and service, please leave us positive feedback and 5 star review and images upload.
2. If you are not satisfied, please contact us kindly first. We will try our best to deal with the issue for you or you can exchange or return the item in one week.
About Warranty
1. We provide 30 days replacement and 3 years warranty period, repair for free; but more than two years, charge for parts and shipping charges as appropriate.
2. All returned items must be in its original conditions. Anthropogenic causes as defects are not guaranteed.
