SPECIFICATIONS

3x4K Display Ports: 2*HDMI, 1*DP, 1*Type-C

Brand Name: Topton

Certification: CE,FCC,RoHS

Graphic Cards: Intel Iris Xe Graphics

Graphics Card Type: Integrated Card

Hard Drive Capacity: ≤ 40 GB

High-concerned chemical: None

Memory Capacity: ≤ 128MB

Memory Type: 2*DDR4 SO-DIMM slots, max 64GB

Model Number: GM1

Operating System: Windows 11, Ubuntu etc

Origin: Mainland China

Processor Brand: Intel

Processor Main Frequency: Depends on CPU

Processor Model: Core

Storage Type: 2*M.2 2280 NVMe+1*2.5'' SATA3.0

Type: Mini Desktop,Mini PC

Use: Multimedia

Wireless: 802.11AX WiFi6 BT5.2

Processor parameter for referance only

Processors	Cores & Threads	L3 Cache	Max Turbo Frequency	TDP	Graphics
Core i5-1235U	10 cores, 12 threads	12M	4.40 GHz	15W	Intel Iris Xe Graphics max 1.20GHz
Core i7-1255U	10 cores, 12 threads	12M	4.70 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i7-1265U	10 cores, 12 threads	12M	4.80 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i5-1335U	10 cores, 12 threads	12M	4.60 GHz	15W	Intel Iris Xe Graphics max 1.25GHz
Core i7-1355U	10 cores, 12 threads	12M	5.00 GHz	15W	Intel Iris Xe Graphics max 1.30GHz

Dimension:170mm(L)x126mm(W)x51mm(H)
CPU: Intel Core i5-1235U/i7-1255U/i7-1265U/i5-1335U/i7-1355U
GPU: Intel Iris Xe Graphics (request dual channel DDR4 memory)
Ram: 2 x SO-DIMM DDR4 slots, support 3200MHz
SSD: 1xM.2 2280 PCIE4.0x4, 1xM.2 2280 PCIE3.0x4/SATA
HDD: Support 2.5inch 7mm HDD/SSD
WiFi: 802.11AX WiFi6 with Bluethooth5.2
RJ45: 2 x intel i225/i226 100/1000/2500M, can be configured as a host server or router

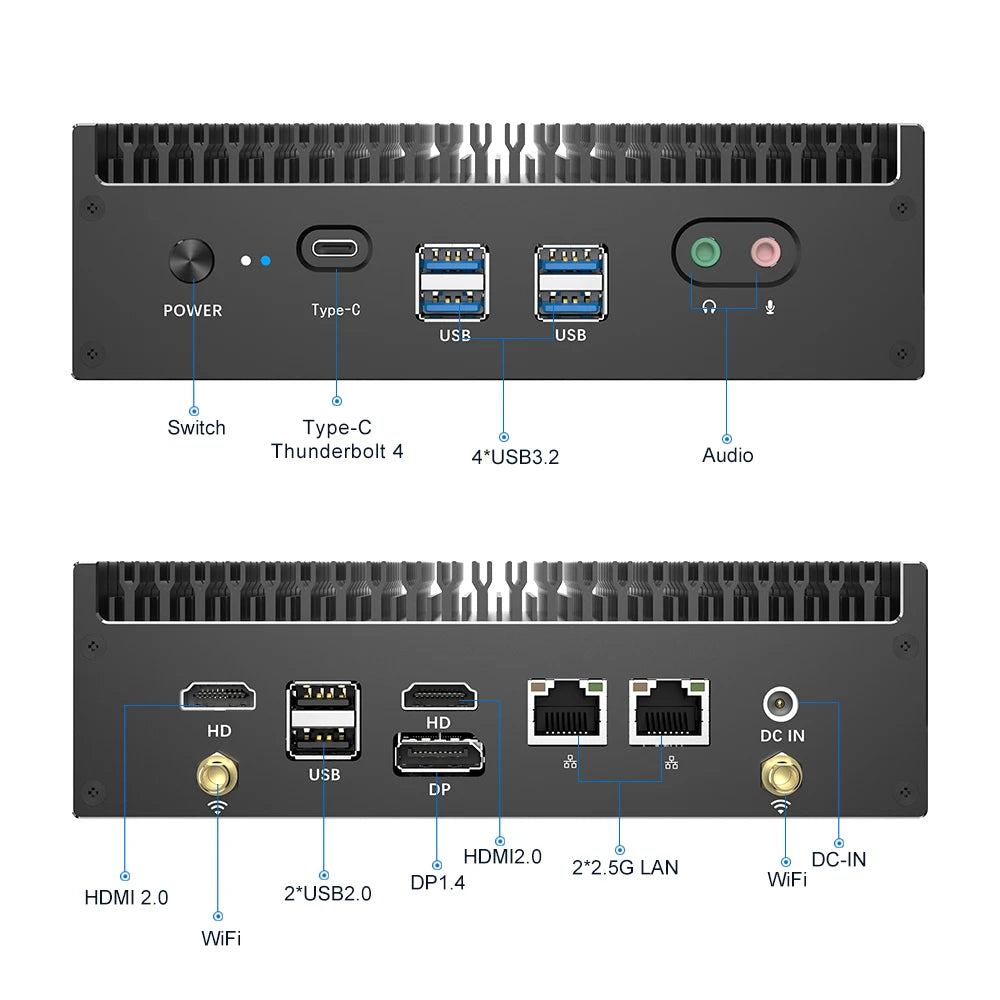

Front I/O: 4 x USB 3.2, 1 x Type-C thunderbolt 4(support eGPU, PD charge), 1 x Earphone, 1 x MIC, 1 x Switch

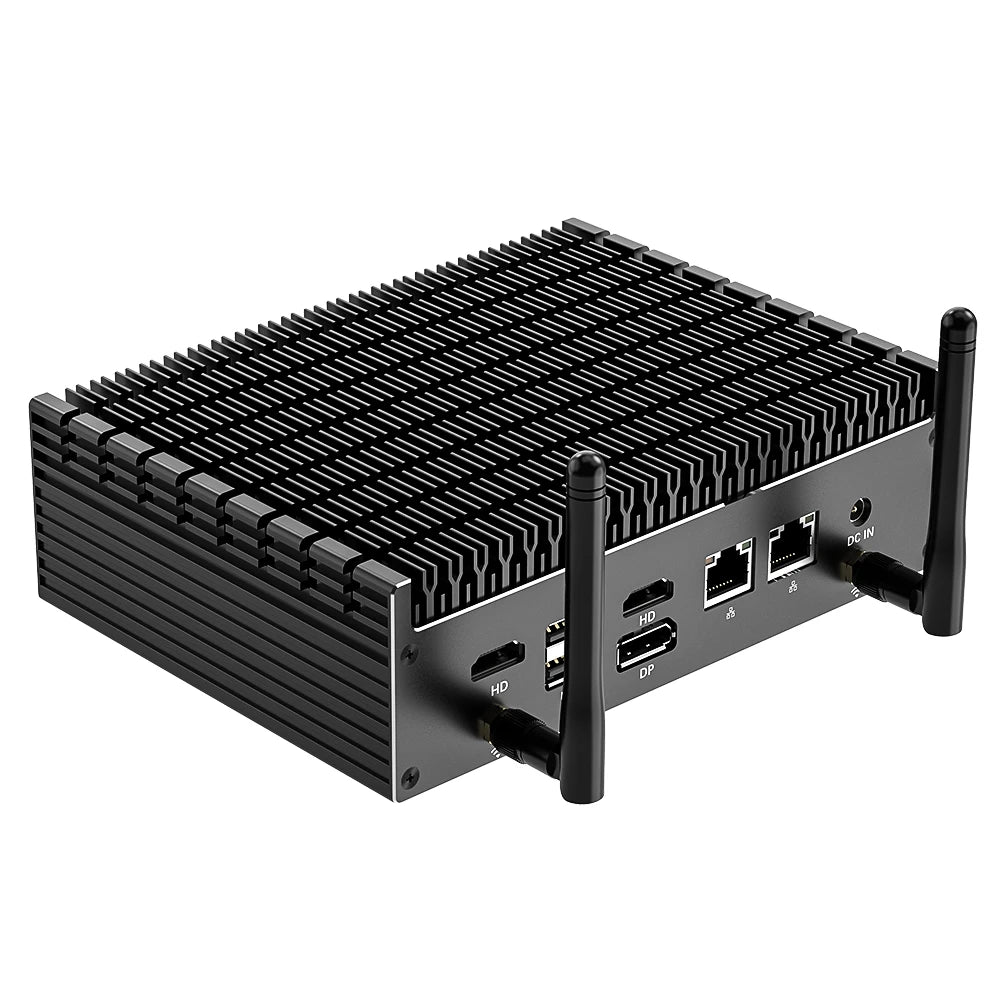

Rear I/O: 2 x USB 2.0, 2 x HDMI2.0, 1 x DP1.4, 2 x RJ45 LAN, 1 x DC-IN
OS: Windows 11 / Ubuntu etc
Power: 19V 4.74A

BIOS: AMI UEFI, support Auto power on, Wake on Lan, PXE, RTC etc

What's in the package

1xMini PC

1xPower supply

1xPower cable

1xSATA cable
